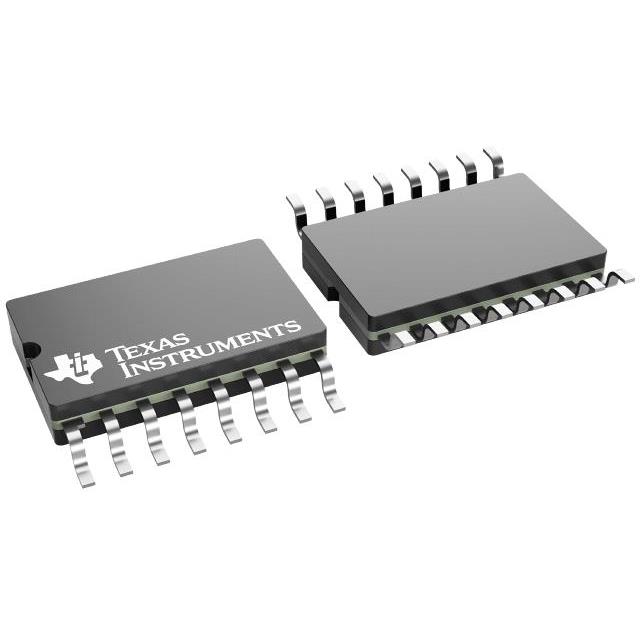

LM2941GW/883
1A LOW DROPOUT ADJUSTABLE REGULAManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Adjustable 1 Output 1A 16-CFP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 16-CSOIC (0.241"", 6.12mm Width) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Output Configuration | Positive |
| Voltage - Input (Max) | 26V |
| Number of Regulators | 1 |
| Supplier Device Package | 16-CFP |
| Voltage - Output (Max) | 20V |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | Enable |
| PSRR | - |
| Voltage Dropout (Max) | 1V @ 1A |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit |
| Current - Supply (Max) | 60 mA |
