LM2940S-12

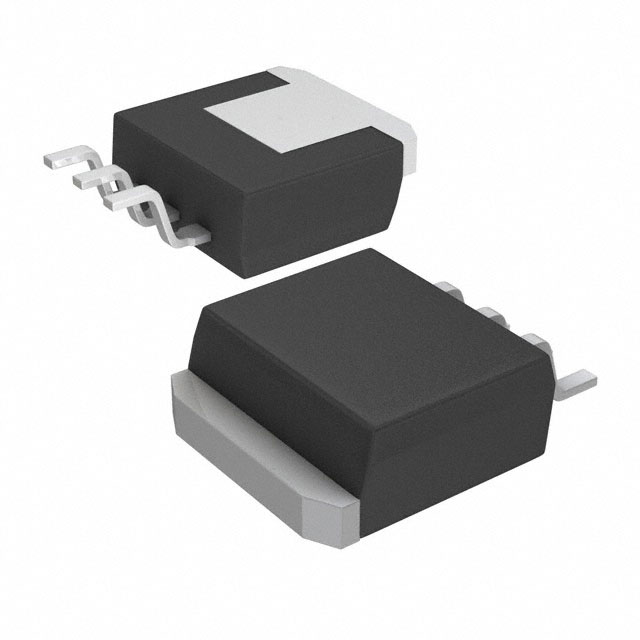

IC REG LIN 12V 1A DDPAK/TO263-3Manufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments LM2940S-12 is a positive fixed 12V linear voltage regulator IC. This component delivers a stable 1A output current with a maximum input voltage of 26V. Featuring a low dropout voltage of 1V at 1A, it is designed for applications requiring efficient power regulation. The LM2940S-12 includes over-current, over-temperature, reverse polarity, and short-circuit protection for enhanced reliability. Its typical quiescent current is 10 mA. This device is commonly utilized in automotive, industrial, and consumer electronics sectors. Supplied in a TO-263 (DDPAK-3) surface-mount package, it is available in tube packaging. The regulator offers a Power Supply Rejection Ratio (PSRR) of 66dB at 120Hz.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 10 mA |
| Voltage - Input (Max) | 26V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-263 (DDPAK-3) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 12V |
| Control Features | - |
| PSRR | 66dB (120Hz) |
| Voltage Dropout (Max) | 1V @ 1A |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Current - Supply (Max) | 15 mA |
