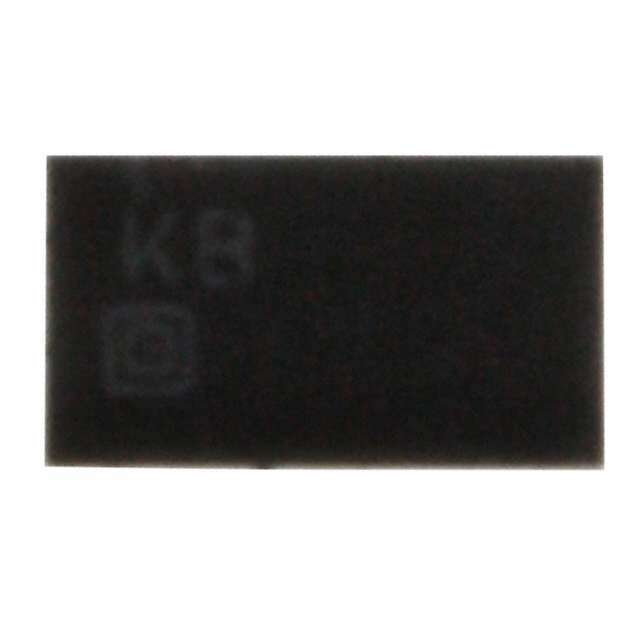

LM2931IBP-5.0/NOPB
IC REG LINEAR 5V 100MA 6USMDManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments LM2931IBP-5-0-NOPB is a positive fixed output Linear Voltage Regulator IC. This device offers a stable 5V output with a maximum current capability of 100mA. Designed for efficient operation, it features a low quiescent current of 1 mA and a maximum supply current of 15 mA. The LM2931IBP-5-0-NOPB boasts a low dropout voltage of 0.3V at 100mA, making it suitable for applications where input voltage is close to the output voltage. Protection features include over-temperature, reverse polarity, and short-circuit protection. With a high power supply rejection ratio (PSRR) of 55dB at 120Hz, it effectively filters out input voltage variations. The IC operates within a temperature range of -40°C to 85°C and is housed in a compact 6-uSMD (6-VFBGA) package, supplied on tape and reel. This component finds application in various sectors including automotive, industrial, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-VFBGA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 100mA |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1 mA |
| Voltage - Input (Max) | 26V |
| Number of Regulators | 1 |
| Supplier Device Package | 6-uSMD |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | - |
| PSRR | 55dB (120Hz) |
| Voltage Dropout (Max) | 0.3V @ 100mA |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit |
| Current - Supply (Max) | 15 mA |
