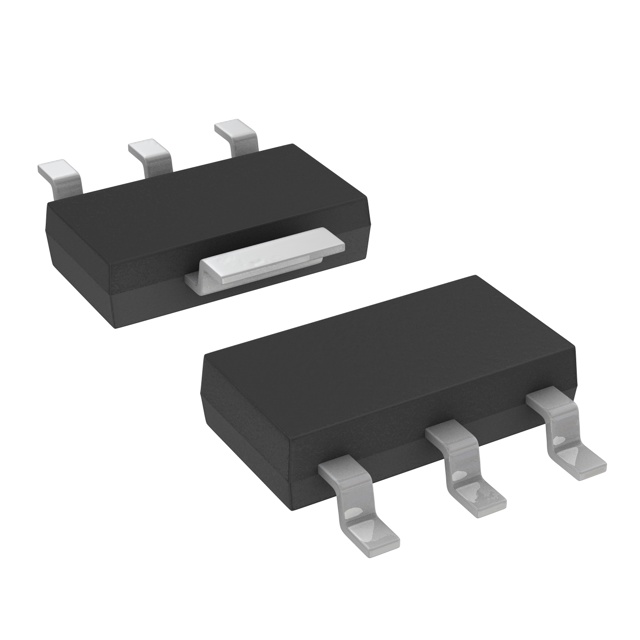

LM1117MPX-3.3

IC REG LIN 3.3V 800MA SOT223-4

Categories: Linear, Low Drop Out (LDO) Regulators

Quality Control: Learn More

Texas Instruments LM1117MPX-3-3 is a positive fixed linear voltage regulator with an 800mA output capability. This device, part of the LM1117-3.3 series, features a fixed output voltage of 3.3V and a maximum input voltage of 15V. The voltage dropout is specified at 1.2V at 800mA. Quiescent current is 5mA with a maximum supply current of 10mA. Protection features include over-current and over-temperature shutdown. The regulator offers a power supply rejection ratio (PSRR) of 75dB at 120Hz. It is supplied in a SOT-223-4 package for surface mounting and operates within a temperature range of 0°C to 125°C. This component is commonly utilized in power supplies and consumer electronics.

Additional Information

Series: LM1117-3.3RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)

Download Free CAD Model:

Technical Details:

Packaging	Tape & Reel (TR)
Package / Case	TO-261-4, TO-261AA
Output Type	Fixed
Mounting Type	Surface Mount
Current - Output	800mA
Operating Temperature	0°C ~ 125°C
Output Configuration	Positive
Current - Quiescent (Iq)	5 mA
Voltage - Input (Max)	15V
Number of Regulators	1
Supplier Device Package	SOT-223-4
Voltage - Output (Max)	-
Voltage - Output (Min/Fixed)	3.3V
Control Features	-
PSRR	75dB (120Hz)
Voltage Dropout (Max)	1.2V @ 800mA
Protection Features	Over Current, Over Temperature
Current - Supply (Max)	10 mA
