LM1086IS-3.3

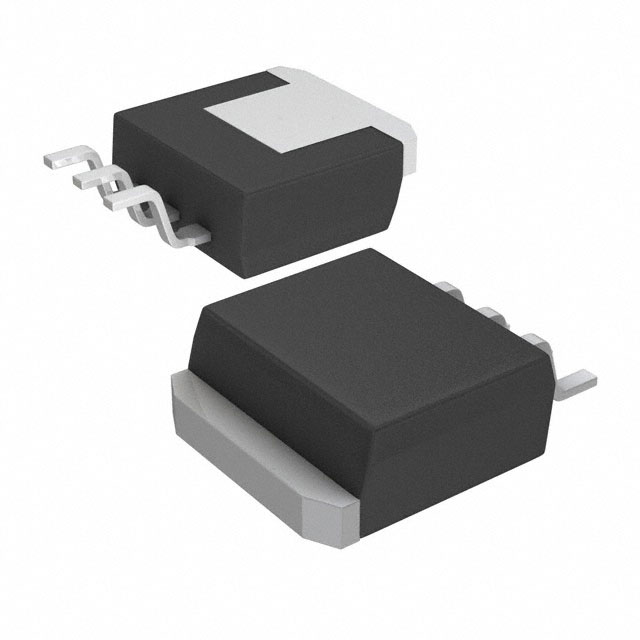

IC REG LIN 3.3V 1.5A DDPAK/TO263Manufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments LM1086IS-3-3 is a positive fixed output linear voltage regulator with a 3.3V output and a 1.5A current capability. This device features a low dropout voltage of 1.5V at the maximum output current, along with over-current, over-temperature, and short-circuit protection. The LM1086IS-3-3 offers a high power supply rejection ratio (PSRR) of 72dB at 120Hz. With an input voltage range up to 27.5V and an operating temperature range of -40°C to 125°C, it is suitable for applications in consumer electronics, industrial control, and telecommunications. The device is supplied in a TO-263 (DDPAK-3) surface-mount package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1.5A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 5 mA |
| Voltage - Input (Max) | 27.5V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-263 (DDPAK-3) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | - |
| PSRR | 72dB (120Hz) |
| Voltage Dropout (Max) | 1.5V @ 1.5A |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Current - Supply (Max) | 10 mA |
