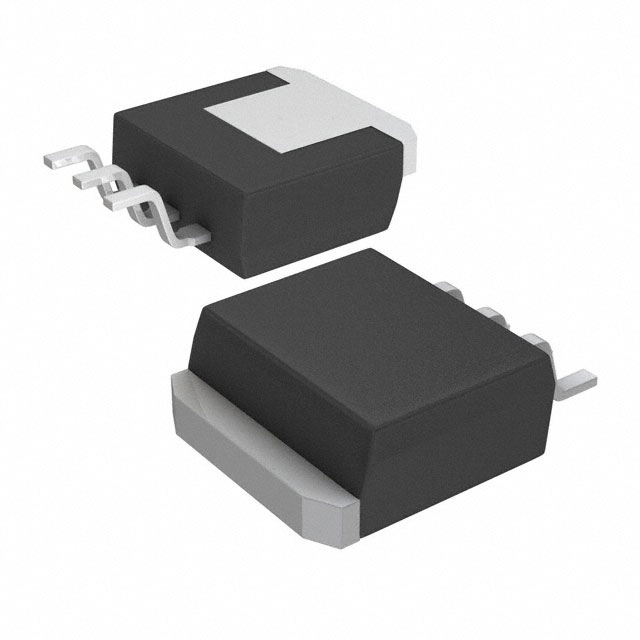

LM1085IS-ADJ
IC REG LIN POS ADJ 3A DDPAKManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments LM1085IS-ADJ is a positive adjustable linear voltage regulator designed for high-current applications. This device offers a 3A output capability and a wide input voltage range up to 29V, with an adjustable output from 1.25V to 15V. Featuring a low dropout voltage of 1.5V at 3A, it provides efficient power regulation. The regulator includes overcurrent and overtemperature protection for enhanced reliability. Its surface mount TO-263 (DDPAK-3) package is suitable for demanding thermal environments. The LM1085IS-ADJ is utilized in various industrial sectors, including power supplies, telecommunications, and consumer electronics. Performance characteristics include a PSRR of 75dB at 120Hz and an operating temperature range of -40°C to 125°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 10 mA |
| Voltage - Input (Max) | 29V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-263 (DDPAK-3) |
| Voltage - Output (Max) | 15V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Control Features | - |
| PSRR | 75dB (120Hz) |
| Voltage Dropout (Max) | 1.5V @ 3A |
| Protection Features | Over Current, Over Temperature |
