DRV5056A3EDBZRQ1
DRV5056-Q1 AUTOMOTIVE HIGH-ACCURManufacturer: Texas Instruments
Categories: Linear, Compass (ICs)
Quality Control: Learn More

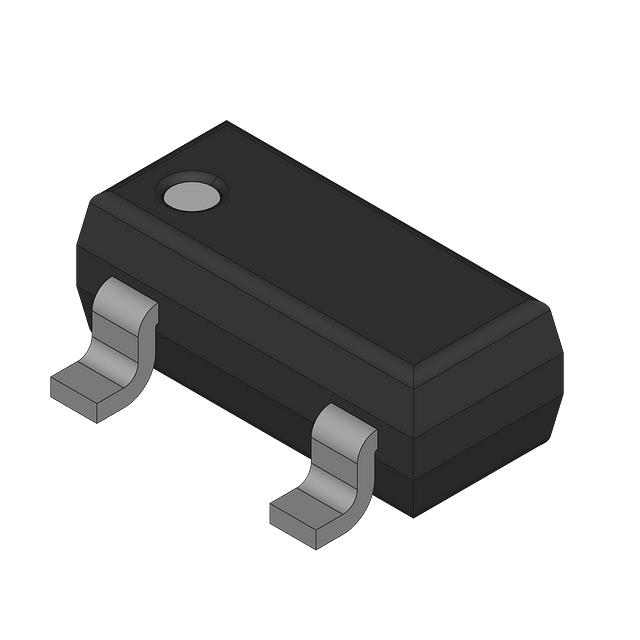

Hall Effect Sensor Single Axis SOT-23-3
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Axis | Single |
| Operating Temperature | -40°C ~ 150°C |
| Voltage - Supply | 3V ~ 3.6V, 4.5V ~ 5.5V |
| Bandwidth | 20kHz |
| Technology | Hall Effect |
| Resolution | - |
| Sensing Range | ±79mT |
| Current - Output (Max) | 1mA |
| Current - Supply (Max) | 10mA |
| Supplier Device Package | SOT-23-3 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
Request a Quote
