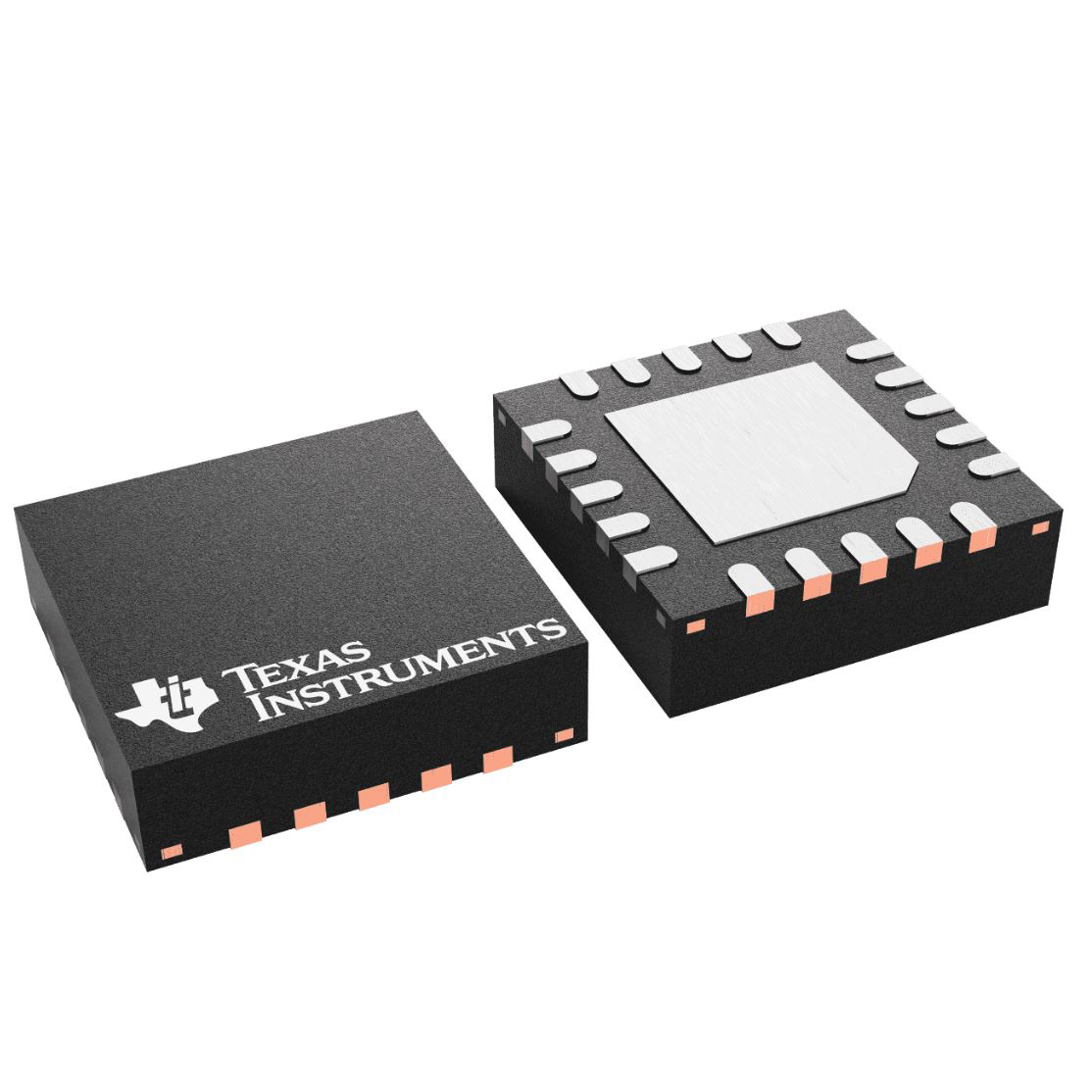

TPS61177ABRGRR
PROTOTYPEManufacturer: Texas Instruments
Categories: LED Drivers
Quality Control: Learn More
LED Driver IC 6 Output DC DC Regulator Step-Up (Boost) Analog, PWM Dimming 1.8A 20-VQFN (3.5x3.5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 20-VFQFN Exposed Pad |
| Voltage - Output | 4.5V ~ 39V |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Frequency | 450kHz ~1.2MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 1.8A |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 20-VQFN (3.5x3.5) |
| Dimming | Analog, PWM |
| Voltage - Supply (Min) | 2.5V |
| Voltage - Supply (Max) | 24V |
