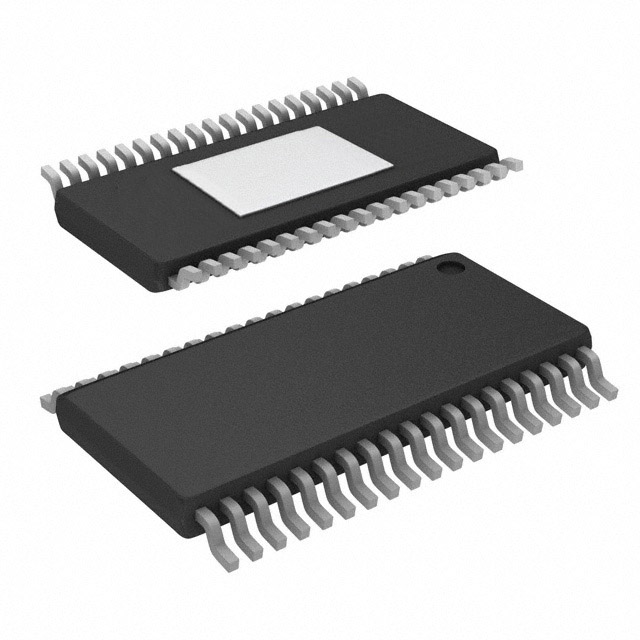

TLC5951DAP
IC LED DRVR LINEAR 40MA 38HTSSOPManufacturer: Texas Instruments
Categories: LED Drivers
Quality Control: Learn More
LED Driver IC 24 Output Linear Shift Register Dimming 40mA 38-HTSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 38-PowerTSSOP (0.240"", 6.10mm Width) |
| Voltage - Output | 15V |
| Mounting Type | Surface Mount |
| Number of Outputs | 24 |
| Frequency | 30MHz |
| Type | Linear |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Signage |
| Current - Output / Channel | 40mA |
| Internal Switch(s) | Yes |
| Topology | Shift Register |
| Supplier Device Package | 38-HTSSOP |
| Dimming | - |
| Voltage - Supply (Min) | 3V |
| Voltage - Supply (Max) | 5.5V |
