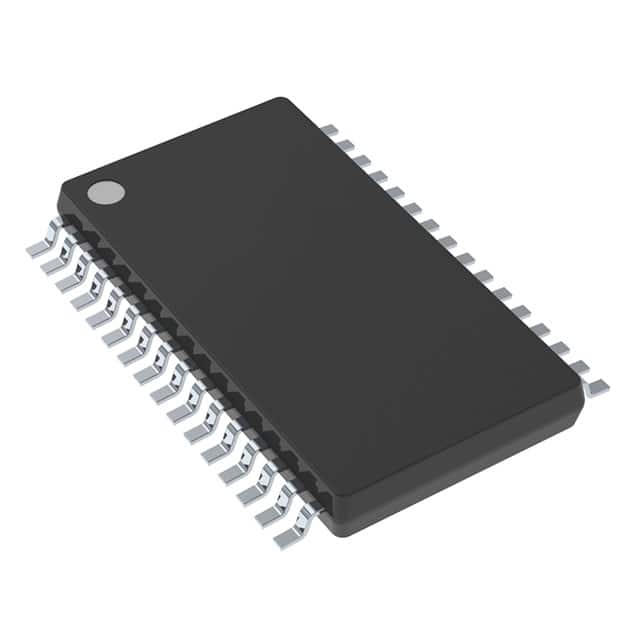

TLC5923DAPG4
IC LED DRVR LINEAR 80MA 32HTSSOPManufacturer: Texas Instruments
Categories: LED Drivers
Quality Control: Learn More
Texas Instruments' TLC5923DAPG4 is a 16-output, 80mA linear LED driver with a shift register topology. This device is designed for applications requiring precise current control and dimming capabilities. Featuring internal switches, it supports a supply voltage range of 3V to 5.5V, with individual output channels capable of sourcing up to 80mA and withstanding up to 17V. The TLC5923DAPG4 operates with a 30MHz clock frequency and is suitable for surface mount applications, provided in a 32-HTSSOP package. Its linear output stage and shift register architecture make it ideal for driving LED backlights in displays and other lighting control systems. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 32-PowerTSSOP (0.240"", 6.10mm Width) |
| Voltage - Output | 17V |
| Mounting Type | Surface Mount |
| Number of Outputs | 16 |
| Frequency | 30MHz |
| Type | Linear |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 80mA |
| Internal Switch(s) | Yes |
| Topology | Shift Register |
| Supplier Device Package | 32-HTSSOP |
| Dimming | - |
| Voltage - Supply (Min) | 3V |
| Voltage - Supply (Max) | 5.5V |
