LP55271TLX/NOPB
IC LED DRIVER RGLTR 1.7A 30DSBGAManufacturer: Texas Instruments
Categories: LED Drivers
Quality Control: Learn More

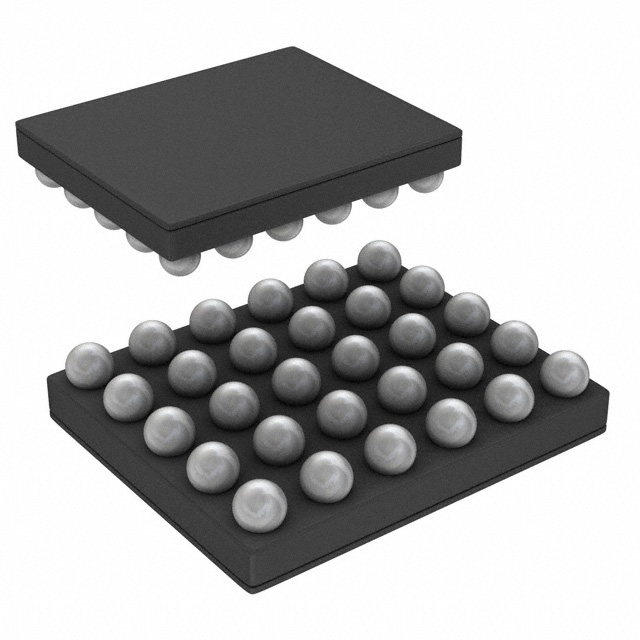

Texas Instruments LP55271TLX-NOPB is a 5-output LED driver IC featuring a DC-DC boost regulator with a switch current capability of 1.7A. This device supports adjustable dimming and operates with a switching frequency between 1MHz and 2MHz. Designed for surface mounting, it is supplied in a 30-DSBGA package. The output voltage range is 4V to 5.4V, with a supply voltage range from 3V to 5.5V. This component is suitable for applications requiring efficient LED control, such as backlighting and camera flash functionalities. The LP55271TLX-NOPB is available on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 30-WFBGA |
| Voltage - Output | 4V ~ 5.4V |
| Mounting Type | Surface Mount |
| Number of Outputs | 5 |
| Frequency | 1MHz ~ 2MHz |
| Type | DC DC Regulator |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Applications | Backlight, Camera Flash |
| Current - Output / Channel | 1.7A (Switch) |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 30-DSBGA |
| Dimming | - |
| Voltage - Supply (Min) | 3V |
| Voltage - Supply (Max) | 5.5V |
