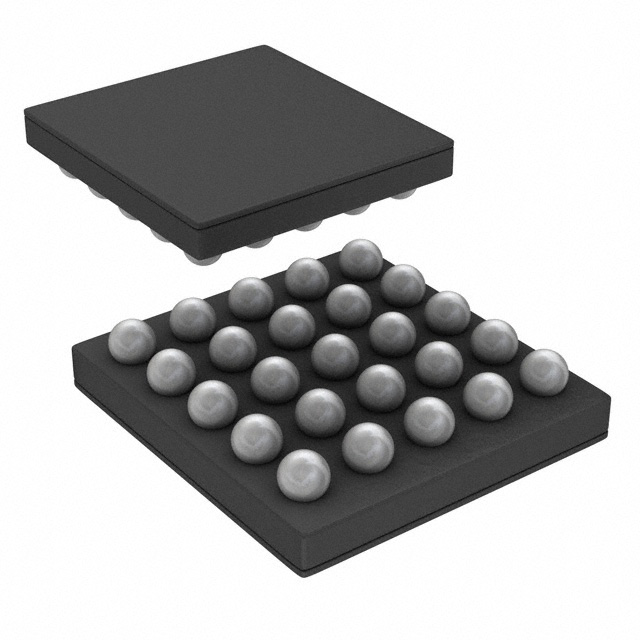

LP5520TLX/NOPB
IC LED DRV RGLTR PWM 60MA 25USMDManufacturer: Texas Instruments
Categories: LED Drivers
Quality Control: Learn More
LED Driver IC 3 Output DC DC Regulator Step-Up (Boost) PWM Dimming 60mA 25-uSMD
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 25-WFBGA |
| Voltage - Output | 5V ~ 20V |
| Mounting Type | Surface Mount |
| Number of Outputs | 3 |
| Frequency | 1.22kHz, 19.52kHz |
| Type | DC DC Regulator |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 60mA |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 25-uSMD |
| Dimming | PWM |
| Voltage - Supply (Min) | 2.9V |
| Voltage - Supply (Max) | 5.5V |
Request a Quote
