LP3936SL/NOPB

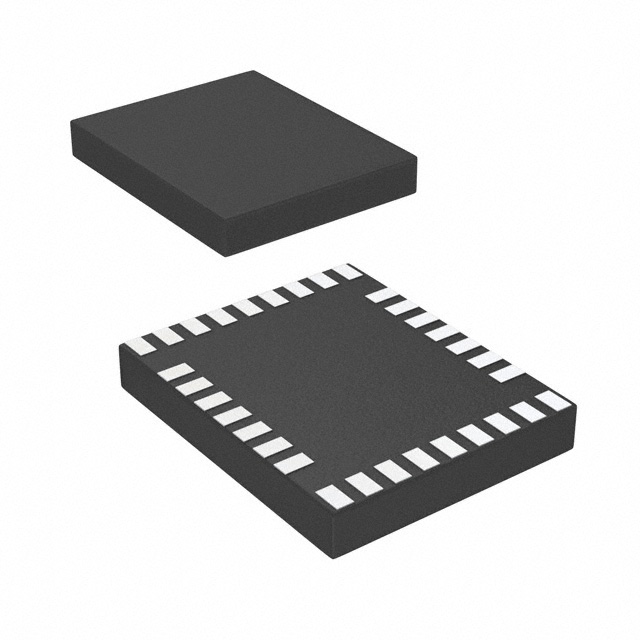

IC LED DRV RGLTR PWM 32TLGAManufacturer: Texas Instruments
Categories: LED Drivers
Quality Control: Learn More
Texas Instruments LP3936SL-NOPB is a 9-output DC-DC regulator designed for LED driving applications. This boost converter features PWM dimming control and can deliver up to 25mA per channel under normal operation, with a 120mA flash current capability for camera flash functionality. The device integrates internal switches for a compact solution. Operating with a minimum supply voltage of 3V and a maximum of 6V, it provides a regulated output voltage of 5.3V. The LP3936SL-NOPB is supplied in a 32-TLGA (5.5x4.5) package, suitable for surface mounting, and operates across a temperature range of -40°C to 85°C. Its high switching frequency of 1MHz contributes to efficient power conversion. This component is commonly utilized in backlight and camera flash systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-WFLGA |
| Voltage - Output | 5.3V |
| Mounting Type | Surface Mount |
| Number of Outputs | 9 |
| Frequency | 1MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight, Camera Flash |
| Current - Output / Channel | 25mA, 120mA (Flash) |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 32-TLGA (5.5x4.5) |
| Dimming | PWM |
| Voltage - Supply (Min) | 3V |
| Voltage - Supply (Max) | 6V |
