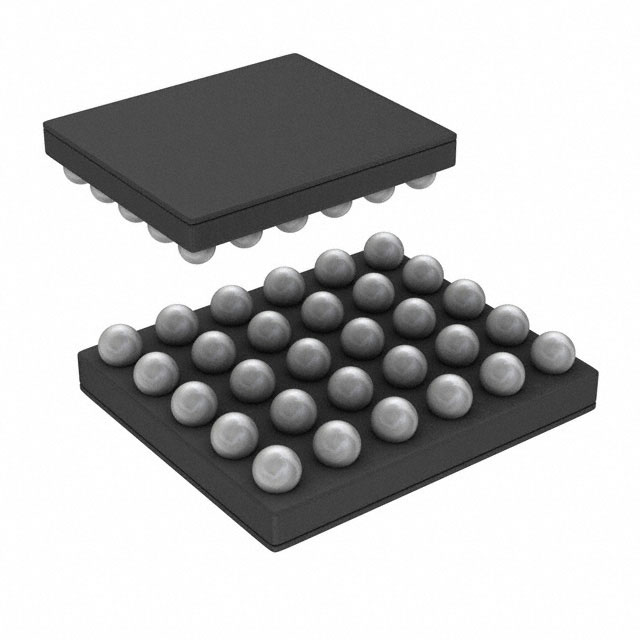

LM8502TME/NOPB
IC LED DRIVER RGLTR 2.3A 30DSBGAManufacturer: Texas Instruments
Categories: LED Drivers
Quality Control: Learn More
Texas Instruments LM8502TME-NOPB is a 12-output DC-DC boost LED driver IC. This device features an internal switch capable of handling up to 2.3A, facilitating efficient step-up regulation for LED arrays. Operating at a fixed frequency of 2MHz, it supports adjustable dimming functionality. The LM8502TME-NOPB is optimized for surface mount applications, utilizing a compact 30-DSBGA package, supplied on tape and reel. Its input voltage range spans from 2.7V to 5.5V, making it suitable for a variety of power sources. This component finds application in backlighting solutions and camera flash modules across various industries.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 30-WFBGA, DSBGA |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 12 |
| Frequency | 2MHz |
| Type | DC DC Regulator |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Applications | Backlight, Camera Flash |
| Current - Output / Channel | 2.3A (Switch) |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 30-DSBGA |
| Dimming | - |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
