LM3533TME-40A/NOPB
IC LED DRV RGLTR PWM 20DSBGAManufacturer: Texas Instruments
Categories: LED Drivers
Quality Control: Learn More
LED Driver IC 7 Output DC DC Regulator Step-Up (Boost), Switched Capacitor (Charge Pump) PWM Dimming 30mA 20-DSBGA
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

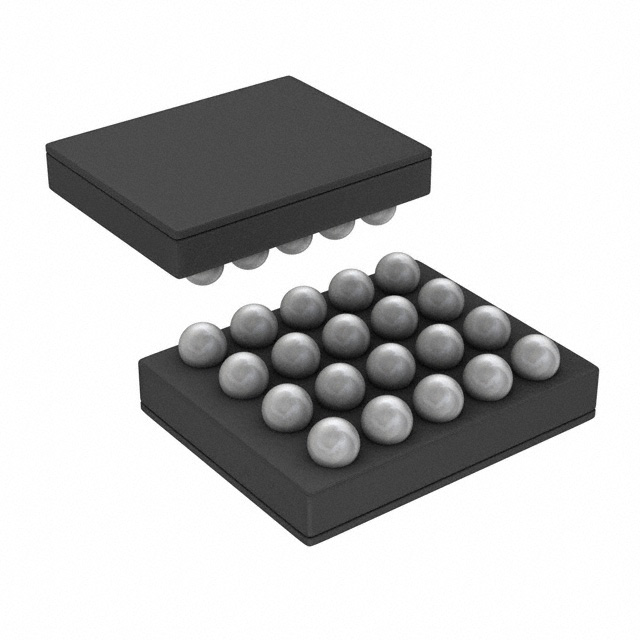

| Package / Case | 20-WFBGA, DSBGA |
| Voltage - Output | 40V |
| Mounting Type | Surface Mount |
| Number of Outputs | 7 |
| Frequency | 500kHz, 1MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Applications | Backlight |
| Current - Output / Channel | 30mA |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost), Switched Capacitor (Charge Pump) |
| Supplier Device Package | 20-DSBGA |
| Dimming | PWM |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
