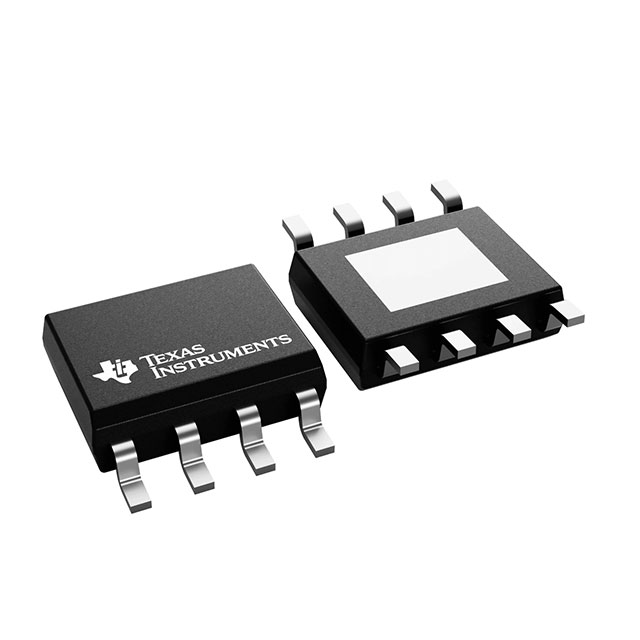

LM3402MRX/J7002927
PROTOTYPEManufacturer: Texas Instruments
Categories: LED Drivers
Quality Control: Learn More
LED Driver IC 1 Output DC DC Regulator Step-Down (Buck) PWM Dimming 500mA 8-SO PowerPad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-PowerSOIC (0.154"", 3.90mm Width) |
| Voltage - Output | 0.2V ~ 40V |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Frequency | 1MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Applications | Lighting |
| Current - Output / Channel | 500mA |
| Internal Switch(s) | Yes |
| Topology | Step-Down (Buck) |
| Supplier Device Package | 8-SO PowerPad |
| Dimming | PWM |
| Voltage - Supply (Min) | 6V |
| Voltage - Supply (Max) | 42V |
| Grade | Automotive |
