LM2795TL
IC LED DRV RGLTR PWM 14DSBGAManufacturer: Texas Instruments
Categories: LED Drivers
Quality Control: Learn More
Texas Instruments LM2795TL is a versatile LED driver featuring four outputs with a switched capacitor (charge pump) DC-DC regulator topology. Designed for applications requiring precise illumination control, this component supports both analog and PWM dimming methods. It delivers a regulated 3.8V output at up to 20mA per channel. The integrated switch allows for efficient operation across a supply voltage range of 2.7V to 5.5V. With a switching frequency of 515kHz, the LM2795TL is suitable for compact designs. The 14-DSBGA package is ideal for surface mount applications, and it is supplied on tape and reel. This device is commonly employed in backlight applications.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

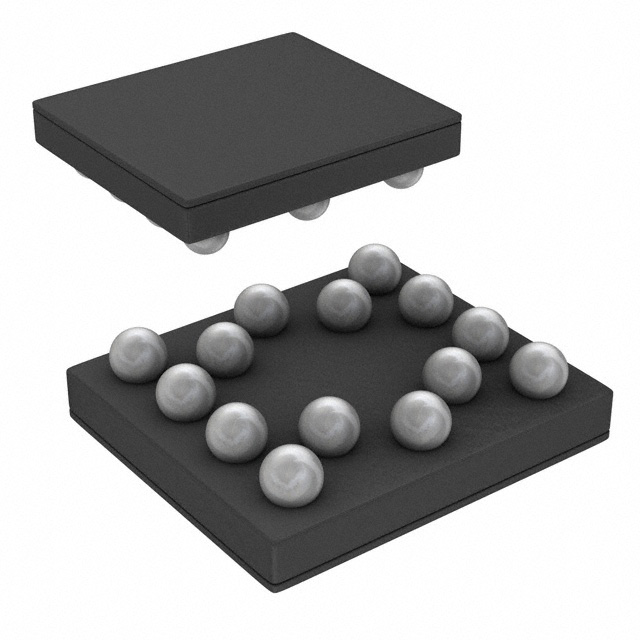

| Package / Case | 14-WFBGA, DSBGA |
| Voltage - Output | 3.8V |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Frequency | 515kHz |
| Type | DC DC Regulator |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 20mA |
| Internal Switch(s) | Yes |
| Topology | Switched Capacitor (Charge Pump) |
| Supplier Device Package | 14-DSBGA |
| Dimming | Analog, PWM |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
