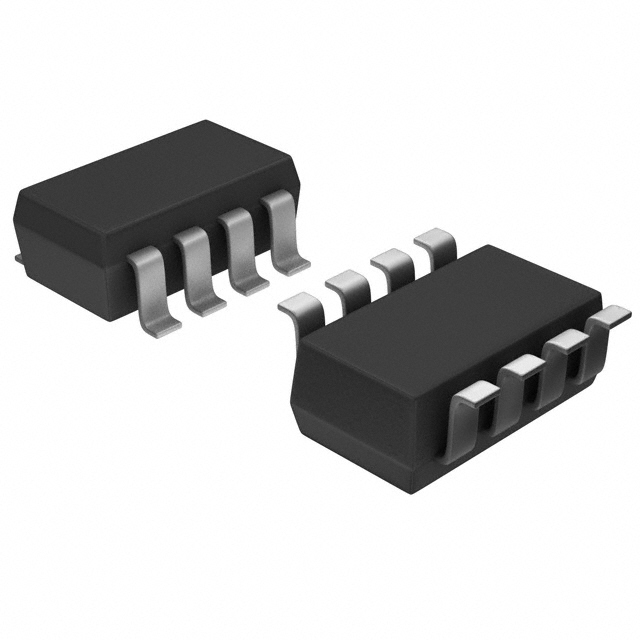

LM2707MF/NOPB
IC LED DRV RGLTR PWM SOT23-8Manufacturer: Texas Instruments
Categories: LED Drivers
Quality Control: Learn More
Texas Instruments LM2707MF-NOPB is a highly integrated DC-DC boost regulator designed for LED driving applications. This SOT-23-8 packaged component features a single output channel capable of delivering up to 30mA with an output voltage of 18V. The device incorporates an internal switch, simplifying design and reducing component count. PWM dimming control is supported, offering precise brightness adjustment for LED backlighting in various portable and consumer electronics. Operating from a supply voltage range of 2.3V to 7V, the LM2707MF-NOPB is suitable for battery-powered systems. Its surface mount packaging and operation within a -30°C to 85°C temperature range make it a versatile solution for compact designs in industries such as mobile devices and portable lighting. The component is supplied on tape and reel (TR).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-8 |
| Voltage - Output | 18V |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Frequency | - |
| Type | DC DC Regulator |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 30mA |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | SOT-23-8 |
| Dimming | PWM |
| Voltage - Supply (Min) | 2.3V |
| Voltage - Supply (Max) | 7V |
