UCC21737QDWQ1
DGTL ISO 5.7KV 1CH GT DVR 16SOICManufacturer: Texas Instruments
Categories: Isolators - Gate Drivers
Quality Control: Learn More
10A Gate Driver Capacitive Coupling 5700Vrms 1 Channel 16-SOIC
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Forward (Vf) (Typ) | - |
| Current - Peak Output | 10A |
| Technology | Capacitive Coupling |
| Current - Output High, Low | - |
| Voltage - Isolation | 5700Vrms |
| Approval Agency | UL, VDE |
| Supplier Device Package | 16-SOIC |
| Rise / Fall Time (Typ) | 33ns, 27ns |
| Common Mode Transient Immunity (Min) | 150V/ns |
| Propagation Delay tpLH / tpHL (Max) | 130ns, 130ns |
| Pulse Width Distortion (Max) | 30ns |
| Grade | Automotive |
| Number of Channels | 1 |
| Voltage - Output Supply | 13V ~ 33V |
| Qualification | AEC-Q100 |
Request a Quote
Clients Also Buy

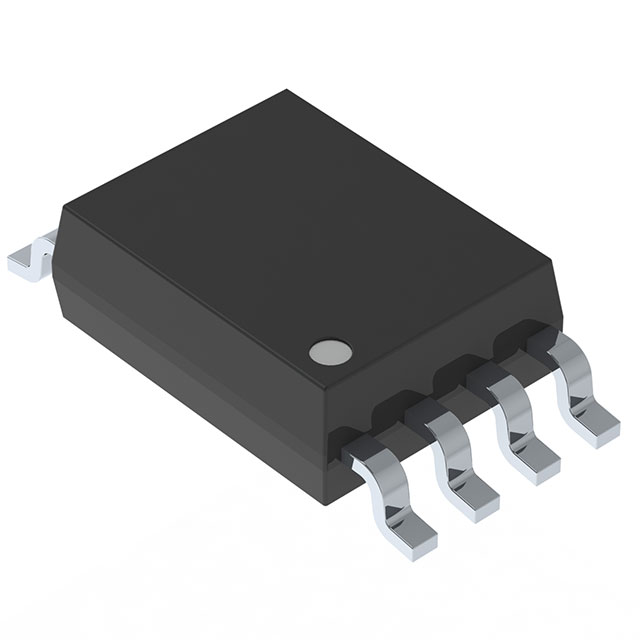

TPSI3050DWZR
