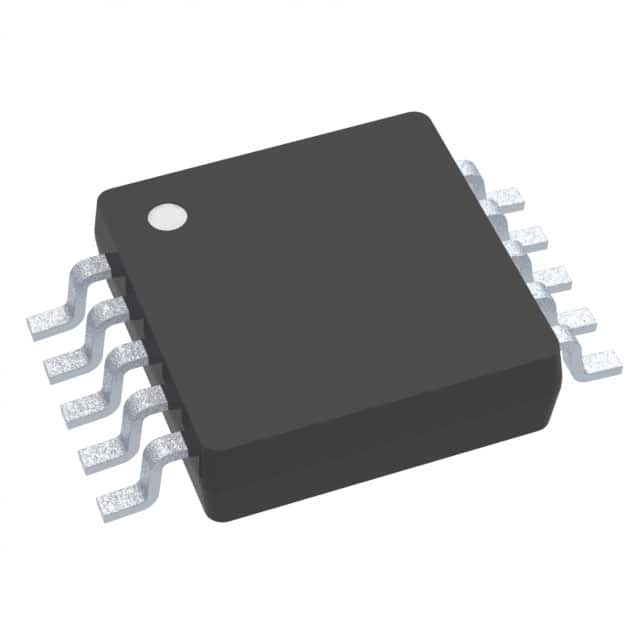

TLV2783IDGS
IC OPAMP GP 2 CIRCUIT 10VSSOPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments TLV2783IDGS is a dual-channel operational amplifier offering rail-to-rail output performance. This general-purpose amplifier features a gain bandwidth product of 8 MHz and a slew rate of 5 V/µs, making it suitable for various signal conditioning applications. With a low input bias current of 2.5 pA and an input offset voltage of 250 µV, it provides high precision for sensitive measurements. The device operates from a 1.8 V to 3.6 V supply span, consuming a typical quiescent current of 650 µA per channel. Delivering 23 mA output current per channel, it supports demanding loads. The TLV2783IDGS is supplied in a 10-VSSOP package for surface mounting and is rated for operation in industrial environments from -40°C to 125°C. This component is commonly integrated into instrumentation and sensor systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 650µA (x2 Channels) |
| Slew Rate | 5V/µs |
| Gain Bandwidth Product | 8 MHz |
| Current - Input Bias | 2.5 pA |
| Voltage - Input Offset | 250 µV |
| Supplier Device Package | 10-VSSOP |
| Number of Circuits | 2 |
| Current - Output / Channel | 23 mA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 3.6 V |
