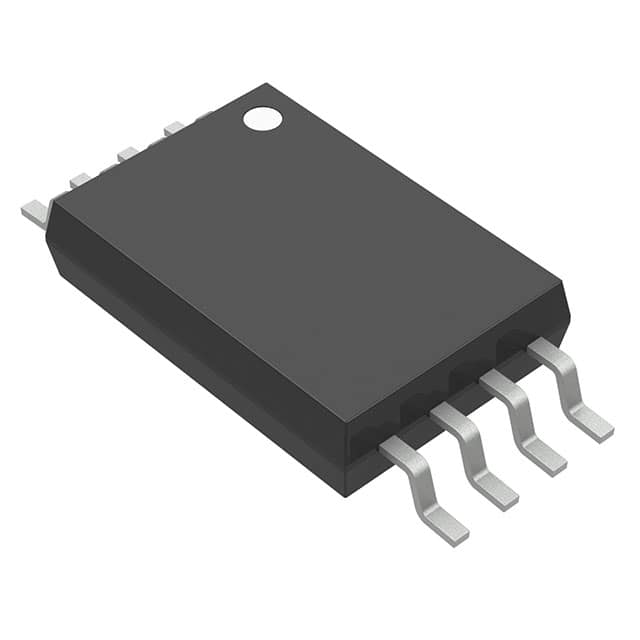

TLV2432AIPW
IC CMOS 2 CIRCUIT 8TSSOPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The Texas Instruments TLV2432AIPW is a dual-channel CMOS operational amplifier from the LinCMOS™ series. This device features rail-to-rail output operation and is designed for low-power applications, consuming only 100µA per channel. With a gain bandwidth product of 550 kHz and a slew rate of 0.25V/µs, it offers performance suitable for various signal conditioning and amplification tasks. The TLV2432AIPW boasts an input bias current of 1 pA and an input offset voltage of 300 µV, ensuring high precision. It operates from a supply voltage range of 2.7V to 10V and can deliver up to 50 mA of output current. Housed in an 8-TSSOP package, this surface-mount component is ideal for use in instrumentation, portable electronics, and battery-powered systems.
Additional Information
Series: LinCMOS™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | CMOS |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Supply | 100µA (x2 Channels) |
| Slew Rate | 0.25V/µs |
| Gain Bandwidth Product | 550 kHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 300 µV |
| Supplier Device Package | 8-TSSOP |
| Number of Circuits | 2 |
| Current - Output / Channel | 50 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 10 V |
