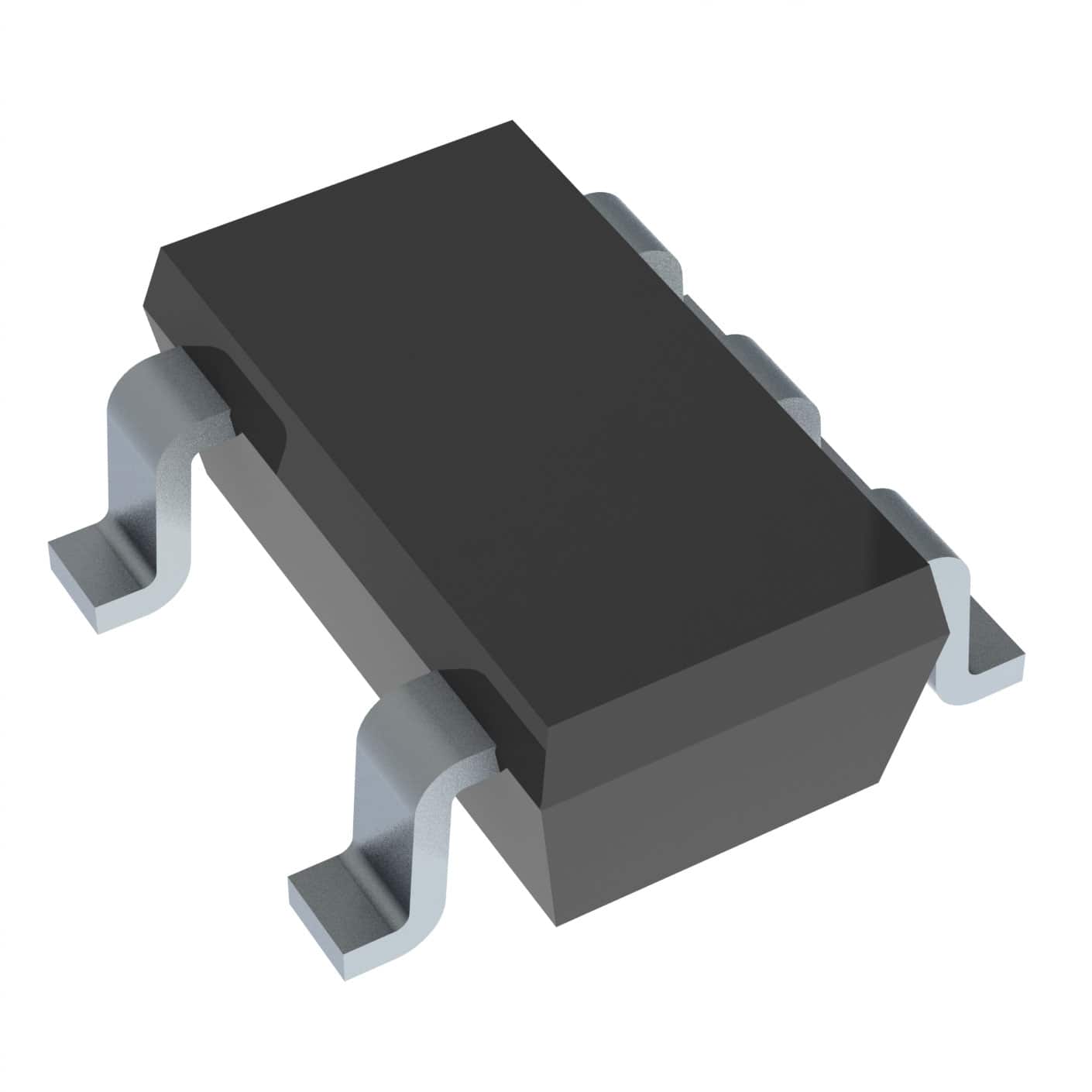

TLV2371MDBVREP
IC OPAMP GP 1 CIRCUIT SOT23-5Manufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments TLV2371MDBVREP is a single-circuit, general-purpose operational amplifier featuring rail-to-rail output. This device operates with a supply voltage span from 2.7V to 16V and a typical supply current of 750µA. Its 3 MHz gain bandwidth product and 2.1V/µs slew rate make it suitable for a variety of applications. The TLV2371MDBVREP boasts an input bias current of 1 pA and an input offset voltage of 2 mV. Packaged in a SOT-23-5 surface-mount configuration, this component is commonly found in industrial, automotive, and consumer electronics sectors. The operating temperature range is -55°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -55°C ~ 125°C |
| Current - Supply | 750µA |
| Slew Rate | 2.1V/µs |
| Gain Bandwidth Product | 3 MHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 2 mV |
| Supplier Device Package | SOT-23-5 |
| Number of Circuits | 1 |
| Current - Output / Channel | 16 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 16 V |
Request a Quote
