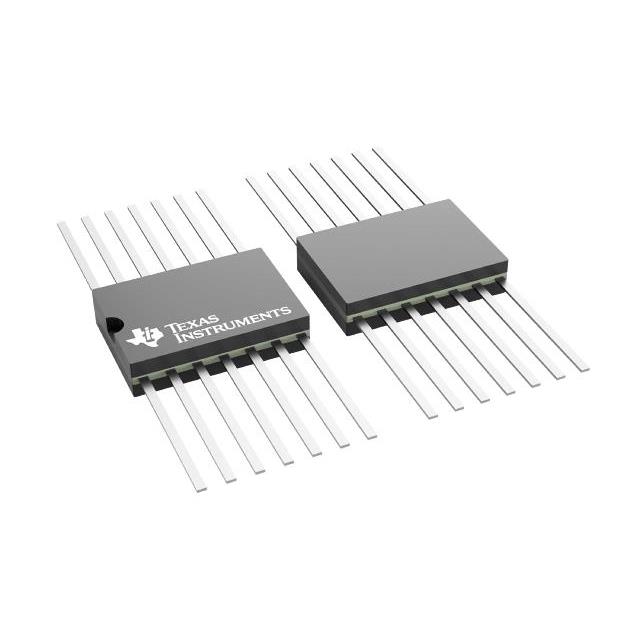

TLV2264AMJB
LOW VOLTAGE RAIL-TO-RAIL LOW POWManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments TLV2264AMJB is a quad-channel, low-voltage, rail-to-rail output CMOS amplifier. This LinCMOS™ series component features a gain bandwidth product of 710 kHz and a slew rate of 0.55V/µs. Designed for demanding applications, it offers a low input bias current of 1 pA and a typical supply current of 800µA per channel. The amplifier supports a supply voltage span from 2.7V to 8V. Its 14-CDIP package is suitable for through-hole mounting and operates across an extended temperature range of -55°C to 125°C. With its AEC-Q100 qualification, it is well-suited for automotive applications, as well as industrial instrumentation and buffer amplification. The device provides push-pull, rail-to-rail output capabilities.
Additional Information
Series: LinCMOS™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-CDIP (0.300"", 7.62mm) |
| Output Type | Push-Pull, Rail-to-Rail |
| Mounting Type | Through Hole |
| Amplifier Type | CMOS |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Current - Supply | 800µA (x4 Channels) |
| Slew Rate | 0.55V/µs |
| Gain Bandwidth Product | 710 kHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 300 µV |
| Supplier Device Package | 14-CDIP |
| Grade | Automotive |
| Number of Circuits | 4 |
| Current - Output / Channel | 50 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 8 V |
| Qualification | AEC-Q100 |
