TLE2022AMD
IC OPAMP GP 2 CIRCUIT 8SOICManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More

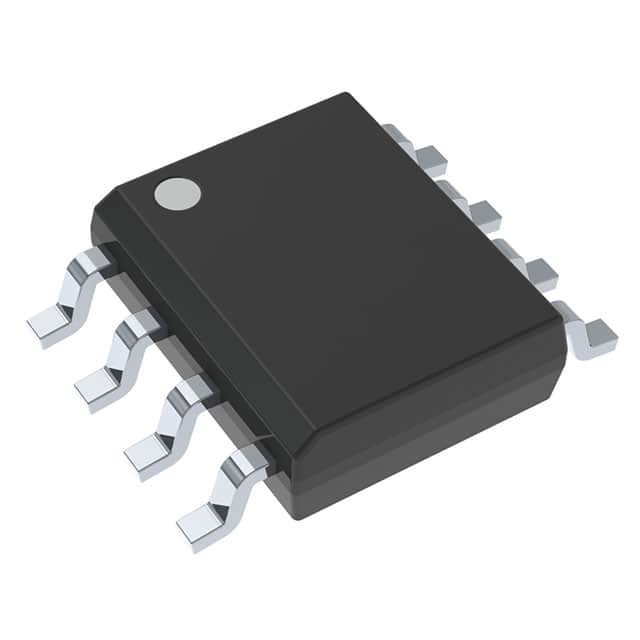

Texas Instruments TLE2022AMD, an Excalibur™ series dual general-purpose operational amplifier, is available in an 8-SOIC package. This precision amplifier features a low input bias current of 33 nA and a low input offset voltage of 120 µV, making it suitable for demanding signal conditioning applications. With a gain bandwidth product of 1.7 MHz and a slew rate of 0.65 V/µs, it offers robust performance for a wide range of analog front-end designs. The device operates from a supply voltage span of 4 V to 40 V and consumes a quiescent current of 550 µA per channel. Its current drive capability is 30 mA per channel, and it is designed for surface mounting. The TLE2022AMD is utilized in industrial automation, medical instrumentation, and high-precision measurement systems. It operates across an extended temperature range of -55°C to 125°C.
Additional Information
Series: Excalibur™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -55°C ~ 125°C |
| Current - Supply | 550µA (x2 Channels) |
| Slew Rate | 0.65V/µs |
| Gain Bandwidth Product | 1.7 MHz |
| Current - Input Bias | 33 nA |
| Voltage - Input Offset | 120 µV |
| Supplier Device Package | 8-SOIC |
| Number of Circuits | 2 |
| Current - Output / Channel | 30 mA |
| Voltage - Supply Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 40 V |
