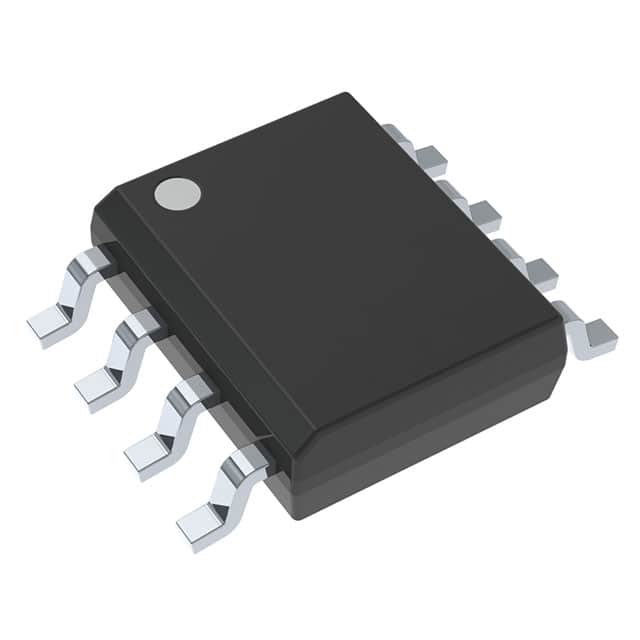

TLC2272AQDG4
IC CMOS 2 CIRCUIT 8SOICManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments TLC2272AQDG4 is a dual-channel, rail-to-rail CMOS operational amplifier designed for demanding automotive applications. This component offers a gain bandwidth product of 2.25 MHz and a slew rate of 3.6V/µs, making it suitable for signal conditioning and amplification tasks. The device features very low input bias current of 1 pA and an input offset voltage of 300 µV. Operating from a supply voltage range of 4.4V to 16V, it consumes a typical quiescent current of 2.4mA per channel. The TLC2272AQDG4 is AEC-Q100 qualified, ensuring reliability in automotive environments such as infotainment systems and advanced driver-assistance systems (ADAS). It is supplied in an 8-SOIC (0.154", 3.90mm Width) surface-mount package and operates within a temperature range of -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | CMOS |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Current - Supply | 2.4mA (x2 Channels) |
| Slew Rate | 3.6V/µs |
| Gain Bandwidth Product | 2.25 MHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 300 µV |
| Supplier Device Package | 8-SOIC |
| Grade | Automotive |
| Number of Circuits | 2 |
| Current - Output / Channel | 50 mA |
| Voltage - Supply Span (Min) | 4.4 V |
| Voltage - Supply Span (Max) | 16 V |
| Qualification | AEC-Q100 |
