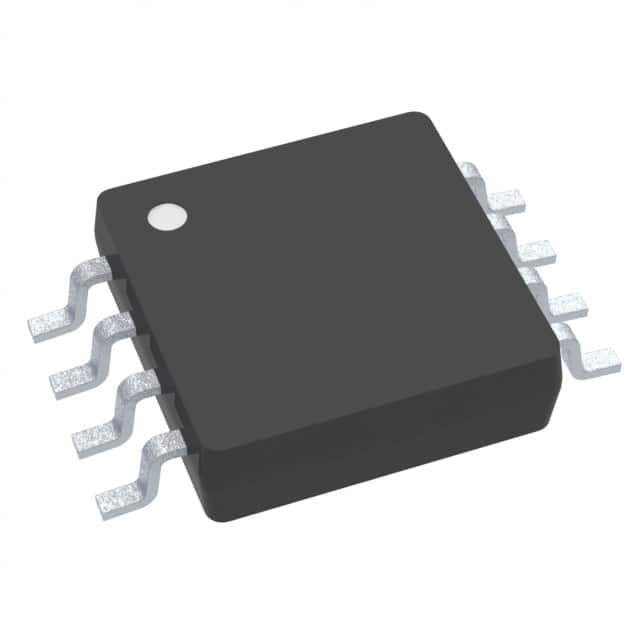

THS4521IDGKT
IC OPAMP DIFF 1 CIRCUIT 8VSSOPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments THS4521IDGKT is a single-circuit, low-power, high-speed differential operational amplifier featuring rail-to-rail output. This device offers a -3dB bandwidth of 145 MHz and a gain bandwidth product of 95 MHz, with a rapid slew rate of 600 V/µs. Designed for efficient operation, it draws only 1.14 mA of quiescent current. The input bias current is 700 nA, and the input offset voltage is 240 µV. The THS4521IDGKT operates from a minimum supply voltage of 2.5 V up to a maximum of 5.5 V. Its output current capability is 55 mA. This component is housed in an 8-VSSOP package and is suitable for surface-mount applications. It finds use in applications such as data acquisition systems, active filters, and high-speed signal processing. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Output Type | Differential, Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | Differential |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 1.14mA |
| Slew Rate | 600V/µs |
| Gain Bandwidth Product | 95 MHz |
| Current - Input Bias | 700 nA |
| Voltage - Input Offset | 240 µV |
| Supplier Device Package | 8-VSSOP |
| Number of Circuits | 1 |
| Current - Output / Channel | 55 mA |
| -3db Bandwidth | 145 MHz |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
