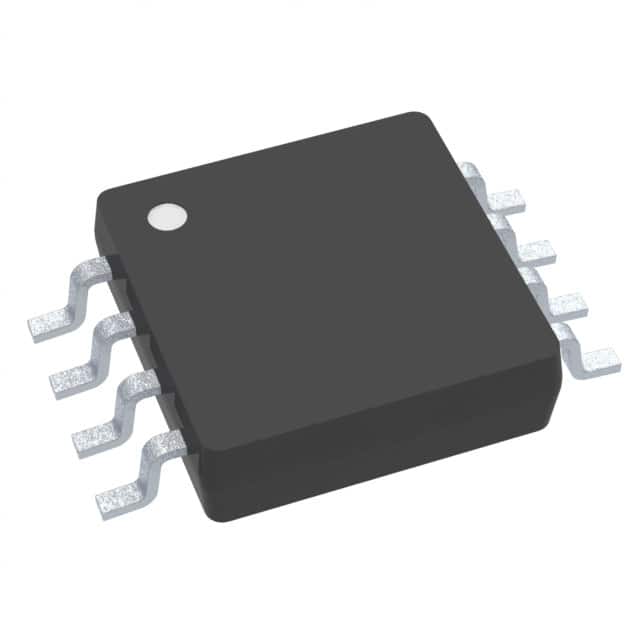

THS4521IDGKR
IC OPAMP DIFF 1 CIRCUIT 8VSSOPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments THS4521IDGKR is a single-circuit, rail-to-rail output, fully differential amplifier. This high-speed operational amplifier offers a 95 MHz gain bandwidth product and a 145 MHz -3dB bandwidth, enabling efficient signal conditioning in demanding applications. Its low 1.14 mA quiescent current and 700 nA input bias current contribute to power efficiency. The device boasts a fast 600 V/µs slew rate and a low 240 µV input offset voltage. Designed for surface mounting, it comes in an 8-VSSOP package. The THS4521IDGKR is suitable for use in industrial automation, medical instrumentation, and high-speed data acquisition systems requiring precise differential signal amplification. It operates from a 2.5V to 5.5V supply span and across an industrial temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Output Type | Differential, Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | Differential |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 1.14mA |
| Slew Rate | 600V/µs |
| Gain Bandwidth Product | 95 MHz |
| Current - Input Bias | 700 nA |
| Voltage - Input Offset | 240 µV |
| Supplier Device Package | 8-VSSOP |
| Number of Circuits | 1 |
| Current - Output / Channel | 55 mA |
| -3db Bandwidth | 145 MHz |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
