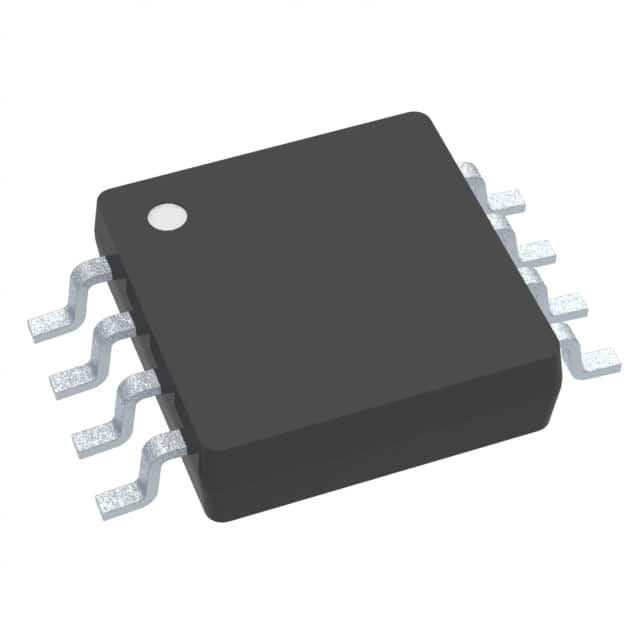

THS4131IDGKG4
IC OPAMP DIFF 1 CIRCUIT 8VSSOPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments THS4131IDGKG4 is a single-circuit, high-performance operational amplifier designed for differential input and output applications. This device features a wide -3dB bandwidth of 150 MHz and a gain bandwidth product of 225 MHz, making it suitable for demanding signal processing tasks. With a slew rate of 52V/µs, it excels in high-speed environments. The THS4131IDGKG4 operates with a low supply current of 12.3mA and supports a wide voltage supply span from 4V to 33V. Its differential output and low input bias current of 2 µA, combined with an input offset voltage of 200 µV, ensure accurate signal amplification. This component is housed in an 8-VSSOP package and is surface-mount compatible. It finds application in instrumentation, communication systems, and video processing. The THS4131IDGKG4 is supplied in tubes and operates within a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Output Type | Differential |
| Mounting Type | Surface Mount |
| Amplifier Type | Differential |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 12.3mA |
| Slew Rate | 52V/µs |
| Gain Bandwidth Product | 225 MHz |
| Current - Input Bias | 2 µA |
| Voltage - Input Offset | 200 µV |
| Supplier Device Package | 8-VSSOP |
| Number of Circuits | 1 |
| Current - Output / Channel | 85 mA |
| -3db Bandwidth | 150 MHz |
| Voltage - Supply Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 33 V |
