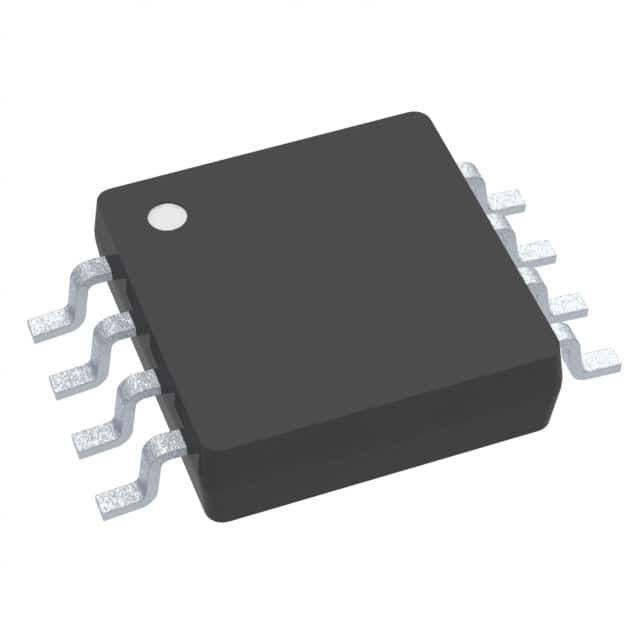

THS4131CDGKG4
IC OPAMP DIFF 1 CIRCUIT 8VSSOPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The Texas Instruments THS4131CDGKG4 is a single-circuit, high-speed differential amplifier. Featuring a gain bandwidth product of 225 MHz and a -3dB bandwidth of 150 MHz, this device is optimized for high-performance signal conditioning applications. It offers a slew rate of 52V/µs and operates with a supply voltage range from 4V to 33V, with a typical quiescent current of 12.3mA. The THS4131CDGKG4 has a low input bias current of 2 µA and an input offset voltage of 200 µV. Its differential input and output stages are ideal for demanding applications in test and measurement, high-speed data acquisition, and medical imaging. The component is supplied in an 8-VSSOP package, suitable for surface mounting and compatible with standard PCB assembly processes. This amplifier operates within a temperature range of 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Output Type | Differential |
| Mounting Type | Surface Mount |
| Amplifier Type | Differential |
| Operating Temperature | 0°C ~ 70°C |
| Current - Supply | 12.3mA |
| Slew Rate | 52V/µs |
| Gain Bandwidth Product | 225 MHz |
| Current - Input Bias | 2 µA |
| Voltage - Input Offset | 200 µV |
| Supplier Device Package | 8-VSSOP |
| Number of Circuits | 1 |
| -3db Bandwidth | 150 MHz |
| Voltage - Supply Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 33 V |
