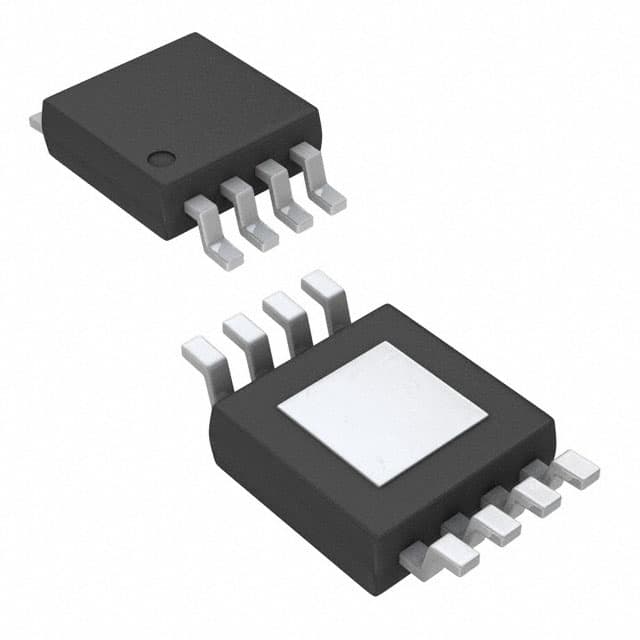

THS4012CDGNG4
IC OPAMP VFB 2 CIRCUIT 8HVSSOPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments THS4012CDGNG4 is a dual-channel, voltage-feedback operational amplifier optimized for high-speed signal processing applications. This device features a 290 MHz gain bandwidth product and a 310 V/µs slew rate, enabling efficient operation with demanding signal chains. Designed for surface mount integration within an 8-HVSSOP package, it facilitates compact board layouts. The THS4012CDGNG4 operates from a wide supply voltage range of 9V to 32V and exhibits a low quiescent current of 7.8mA per channel. Its robust performance characteristics make it suitable for use in test and measurement equipment, active filters, and high-speed data acquisition systems. Key electrical specifications include a 2 µA input bias current and 110 mA output current capability per channel, with a 1 mV input offset voltage.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) Exposed Pad |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Voltage Feedback |
| Operating Temperature | 0°C ~ 70°C |
| Current - Supply | 7.8mA |
| Slew Rate | 310V/µs |
| Gain Bandwidth Product | 290 MHz |
| Current - Input Bias | 2 µA |
| Voltage - Input Offset | 1 mV |
| Supplier Device Package | 8-HVSSOP |
| Number of Circuits | 2 |
| Current - Output / Channel | 110 mA |
| -3db Bandwidth | 290 MHz |
| Voltage - Supply Span (Min) | 9 V |
| Voltage - Supply Span (Max) | 32 V |
