THS3201DGNG4
IC OPAMP CFA 1 CIRCUIT 8HVSSOPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments THS3201DGNG4 is a single-channel current feedback amplifier designed for high-speed signal processing applications. This device offers a -3dB bandwidth of 1.8 GHz and a slew rate of 9800V/µs, enabling efficient amplification of wideband signals. With a typical input bias current of 14 µA and an output current capability of 115 mA per channel, it is suitable for demanding signal chain designs. The THS3201DGNG4 operates from a supply voltage range of 6.6V to 15V, consuming a quiescent current of 14mA. It is housed in an 8-HVSSOP package with an exposed pad, facilitating effective thermal management. This component finds application in areas such as medical imaging, test and measurement equipment, and high-frequency communication systems. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |

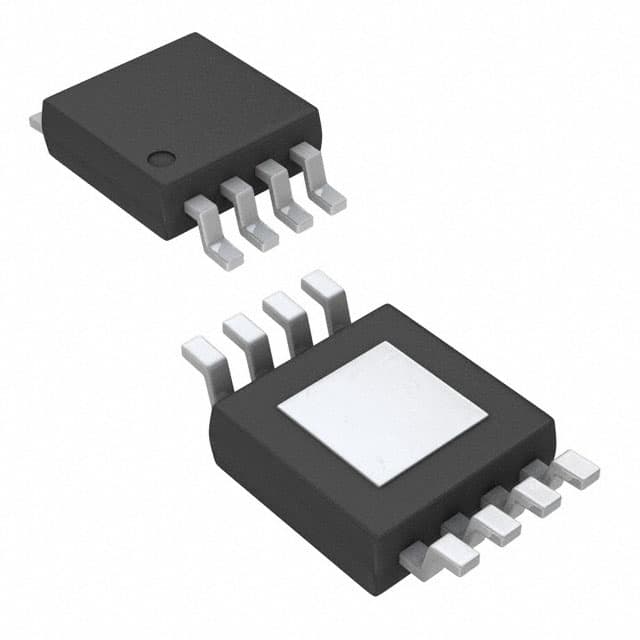

| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) Exposed Pad |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Current Feedback |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 14mA |
| Slew Rate | 9800V/µs |
| Current - Input Bias | 14 µA |
| Voltage - Input Offset | 700 µV |
| Supplier Device Package | 8-HVSSOP |
| Number of Circuits | 1 |
| Current - Output / Channel | 115 mA |
| -3db Bandwidth | 1.8 GHz |
| Voltage - Supply Span (Min) | 6.6 V |
| Voltage - Supply Span (Max) | 15 V |
Request a Quote
