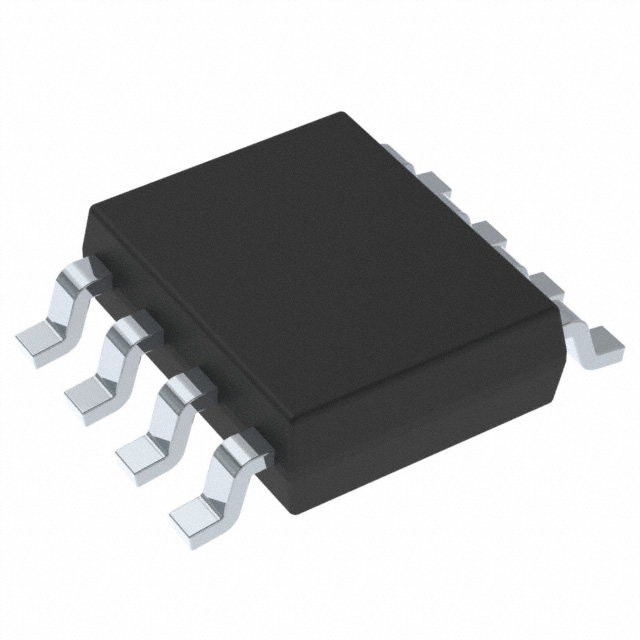

THS3091DDARG3
IC OPAMP CFA 1 CIRC 8SOPWRPADManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments THS3091DDARG3 is a single-channel Current Feedback Amplifier. This device offers a high -3dB bandwidth of 235 MHz and a slew rate of 7300V/µs, making it suitable for high-speed signal processing applications. It features a low quiescent current of 9.5mA, enabling power-efficient designs. The amplifier supports a wide supply voltage range from 10V to 30V. With an output current capability of 280 mA per channel and a low input bias current of 4 µA, it is well-suited for driving loads in demanding environments. The THS3091DDARG3 is available in an 8-SO PowerPad package for surface mounting, facilitating efficient thermal management. This component finds application in areas such as video processing, active filters, and high-speed data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerSOIC (0.154"", 3.90mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Current Feedback |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 9.5mA |
| Slew Rate | 7300V/µs |
| Current - Input Bias | 4 µA |
| Voltage - Input Offset | 900 µV |
| Supplier Device Package | 8-SO PowerPad |
| Number of Circuits | 1 |
| Current - Output / Channel | 280 mA |
| -3db Bandwidth | 235 MHz |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 30 V |
