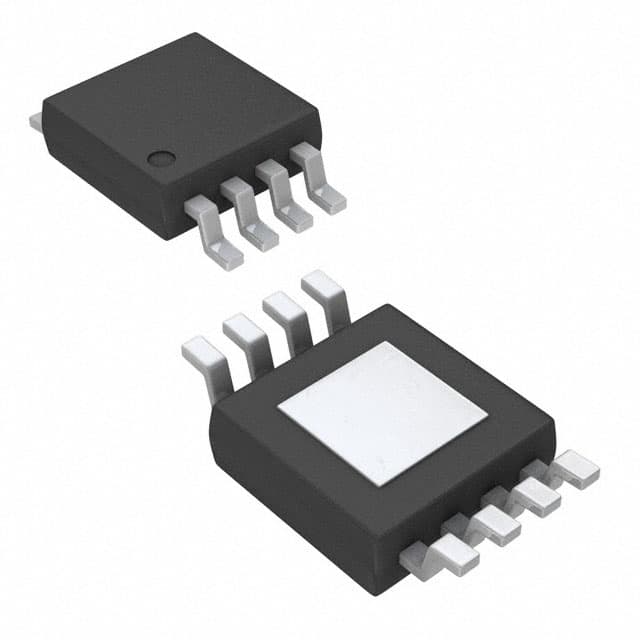

THS3061DGNR
IC OPAMP CFA 1 CIRCUIT 8HVSSOPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments THS3061DGNR is a single-circuit, high-speed current feedback operational amplifier. This component features a -3dB bandwidth of 300 MHz and a gain-bandwidth product of 2.2 GHz, making it suitable for demanding signal processing applications. With a high slew rate of 7000 V/µs and an output current capability of 145 mA, it excels in driving loads and providing fast signal transitions. The device operates across a supply voltage range of 10 V to 30 V and is housed in an 8-HVSSOP package for surface mounting. Typical applications include video processing, active filters, and high-frequency signal conditioning. The THS3061DGNR is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) Exposed Pad |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Current Feedback |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 8.3mA |
| Slew Rate | 7000V/µs |
| Gain Bandwidth Product | 2.2 GHz |
| Current - Input Bias | 6 µA |
| Voltage - Input Offset | 700 µV |
| Supplier Device Package | 8-HVSSOP |
| Number of Circuits | 1 |
| Current - Output / Channel | 145 mA |
| -3db Bandwidth | 300 MHz |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 30 V |
