THS3001HVCDGNRG4
IC OPAMP CFA 1 CIRCUIT 8HVSSOPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments THS3001HVCDGNRG4 is a single-circuit Current Feedback Amplifier designed for high-speed applications. This device features a superior slew rate of 6500V/µs and a -3dB bandwidth of 420 MHz, with a gain bandwidth product reaching 1.75 GHz, enabling efficient signal processing in demanding environments. It operates with a wide supply voltage span from 9V to 37V and consumes 6.9mA of quiescent current. The amplifier provides a robust output current capability of 120 mA per channel. With a low input bias current of 2 µA and an input offset voltage of 1 mV, the THS3001HVCDGNRG4 is suitable for instrumentation and buffer amplifier applications. The component is housed in an 8-HVSSOP package and is supplied on tape and reel. Its performance characteristics make it ideal for use in video processing, active filters, and high-speed data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

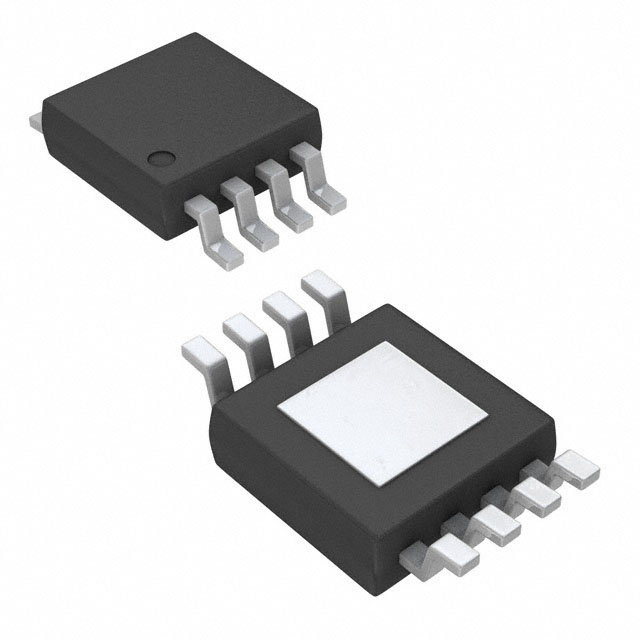

| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) Exposed Pad |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Current Feedback |
| Operating Temperature | 0°C ~ 70°C |
| Current - Supply | 6.9mA |
| Slew Rate | 6500V/µs |
| Gain Bandwidth Product | 1.75 GHz |
| Current - Input Bias | 2 µA |
| Voltage - Input Offset | 1 mV |
| Supplier Device Package | 8-HVSSOP |
| Number of Circuits | 1 |
| Current - Output / Channel | 120 mA |
| -3db Bandwidth | 420 MHz |
| Voltage - Supply Span (Min) | 9 V |
| Voltage - Supply Span (Max) | 37 V |
