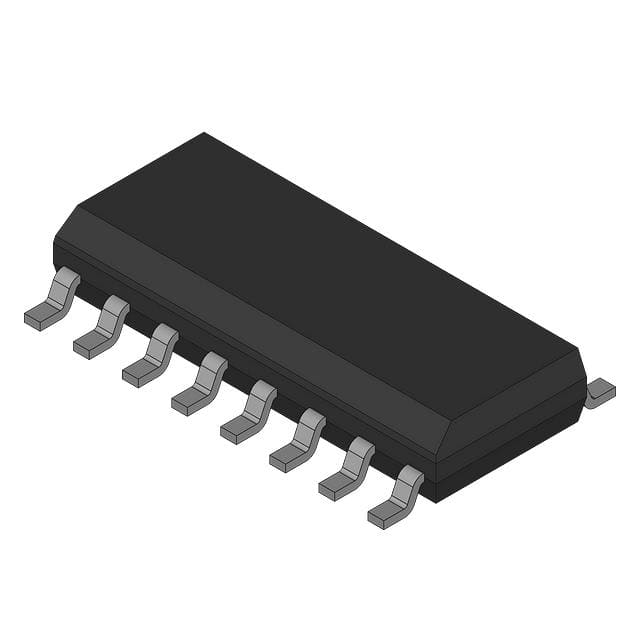

PGA205BU

IC INST AMP 1 CIRCUIT 16SOIC

Categories: Instrumentation, Op Amps, Buffer Amps

Quality Control: Learn More

The Texas Instruments PGA205BU is a single-circuit instrumentation amplifier housed in a 16-SOIC package. This component offers a 1 MHz -3dB bandwidth and a low input bias current of 500 pA. It features a precise 10 µV input offset voltage and a respectable slew rate of 0.7 V/µs. The operational supply voltage range spans from 9 V to 36 V, with a typical supply current consumption of 5.2 mA. Designed for surface mount applications, the PGA205BU is suitable for demanding environments operating between -40°C and 85°C. This device finds application in industrial control, data acquisition systems, and medical instrumentation where accurate signal conditioning is critical.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDatasheet:

Download Free CAD Model:

Technical Details:

Packaging	Tube
Package / Case	16-SOIC (0.295"", 7.50mm Width)
Output Type	-
Mounting Type	Surface Mount
Amplifier Type	Instrumentation
Operating Temperature	-40°C ~ 85°C
Current - Supply	5.2mA
Slew Rate	0.7V/µs
Current - Input Bias	500 pA
Voltage - Input Offset	10 µV
Supplier Device Package	16-SOIC
Number of Circuits	1
Current - Output / Channel	23 mA
-3db Bandwidth	1 MHz
Voltage - Supply Span (Min)	9 V
Voltage - Supply Span (Max)	36 V
