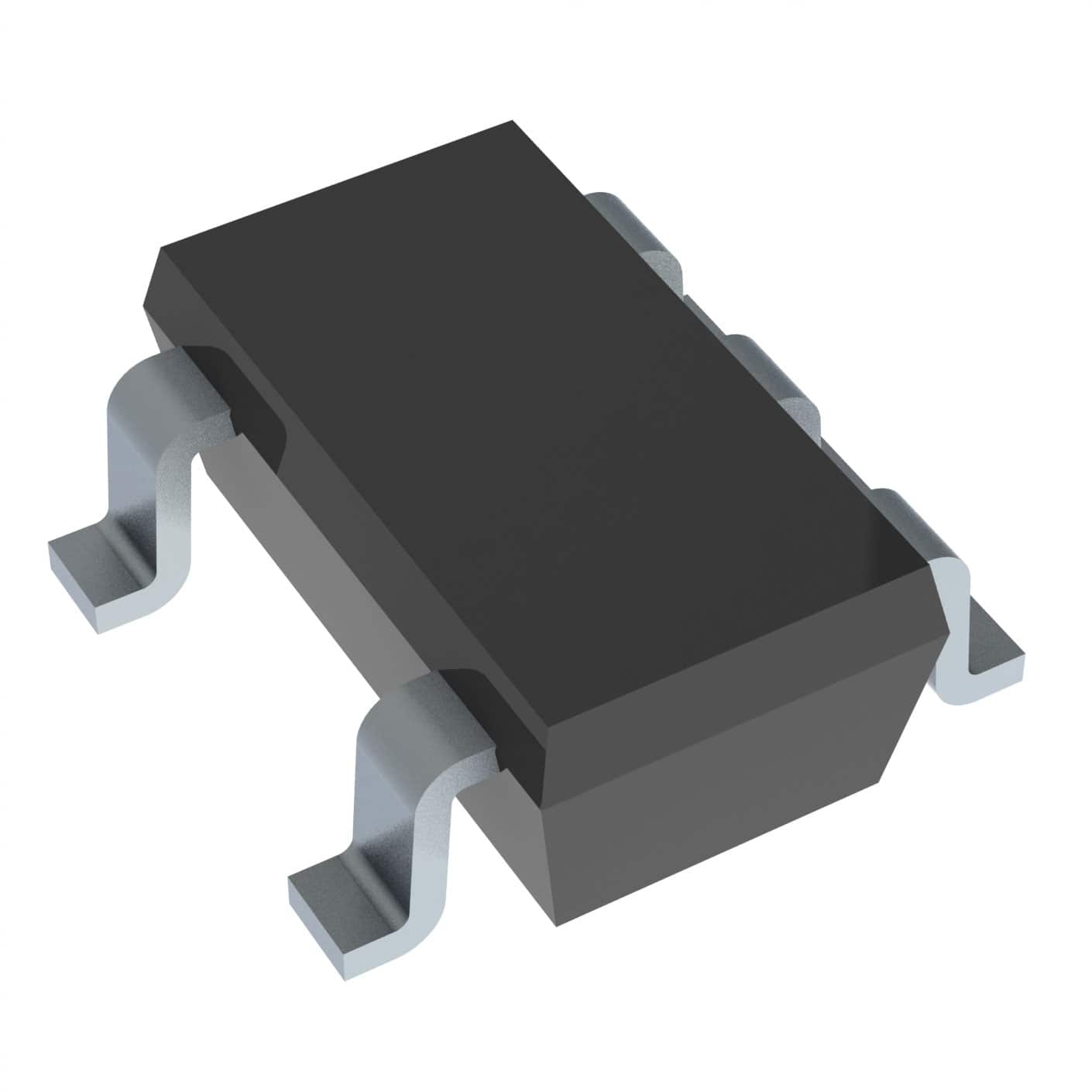

OPA830IDBVT
IC OPAMP VFB 1 CIRCUIT SOT23-5Manufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments OPA830IDBVT is a single-circuit, voltage-feedback operational amplifier housed in a SOT-23-5 package. This device features a high -3dB bandwidth of 310 MHz and a gain bandwidth product of 110 MHz, complemented by a rapid slew rate of 600 V/µs. It is designed for operation across a supply voltage range of 2.8 V to 11 V, with a typical quiescent current of 4.25 mA. The input bias current is 5 µA, and the output current capability is 85 mA. The OPA830IDBVT is suitable for surface mount applications and operates within an extended temperature range of -40°C to 85°C. This amplifier finds utility in various industrial applications, including high-speed signal processing and analog front-end designs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Voltage Feedback |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 4.25mA |
| Slew Rate | 600V/µs |
| Gain Bandwidth Product | 110 MHz |
| Current - Input Bias | 5 µA |
| Voltage - Input Offset | 1.5 mV |
| Supplier Device Package | SOT-23-5 |
| Number of Circuits | 1 |
| Current - Output / Channel | 85 mA |
| -3db Bandwidth | 310 MHz |
| Voltage - Supply Span (Min) | 2.8 V |
| Voltage - Supply Span (Max) | 11 V |
