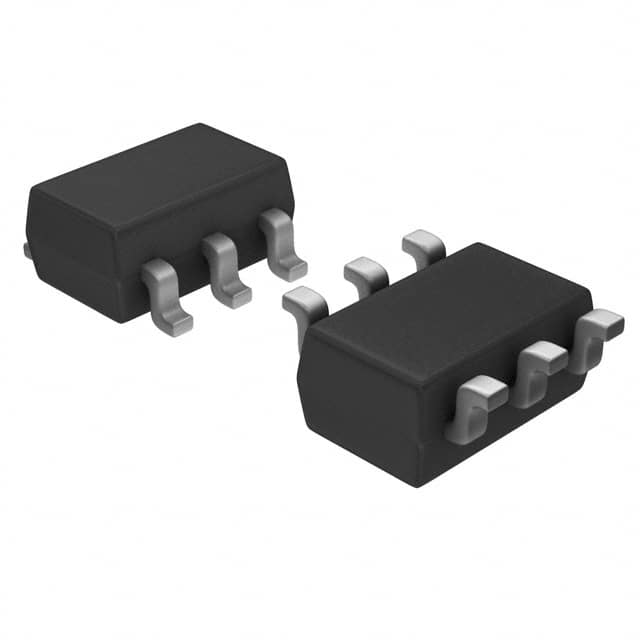

OPA695IDBVT
IC OPAMP CFA 1 CIRCUIT SOT23-6Manufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments OPA695IDBVT is a high-speed, current feedback operational amplifier. This single-circuit amplifier, housed in a SOT-23-6 package, delivers a 3dB bandwidth of 1.7 GHz and a substantial slew rate of 4300 V/µs. Designed for demanding signal processing applications, it features a typical input bias current of 20 µA and can deliver up to 120 mA of output current per channel. The OPA695IDBVT operates across a supply voltage range of 5V to 12V, with a quiescent current draw of 12.9 mA. Its surface mount configuration and -40°C to 85°C operating temperature range make it suitable for integration into compact, high-performance systems across industries such as telecommunications, test and measurement, and video processing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Current Feedback |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 12.9mA |
| Slew Rate | 4300V/µs |
| Current - Input Bias | 20 µA |
| Voltage - Input Offset | 300 µV |
| Supplier Device Package | SOT-23-6 |
| Number of Circuits | 1 |
| Current - Output / Channel | 120 mA |
| -3db Bandwidth | 1.7 GHz |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 12 V |
