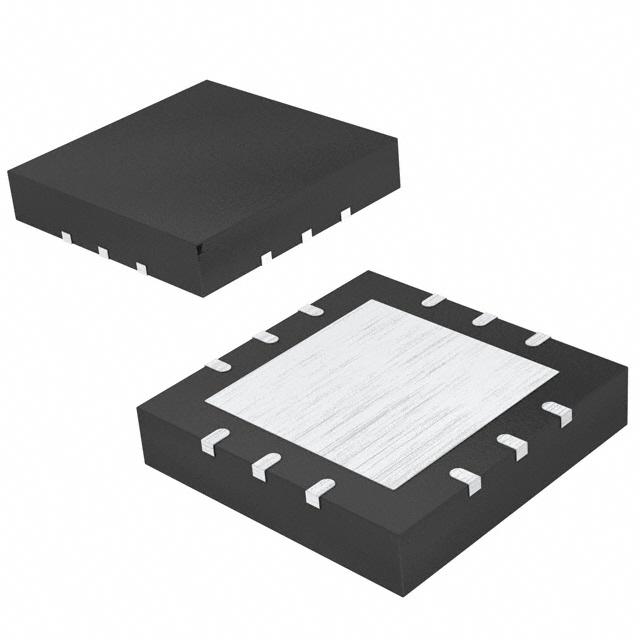

OPA567AIRHGTG4
IC OPAMP GP 1 CIRCUIT 12VQFNManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments OPA567AIRHGTG4 is a general-purpose operational amplifier featuring a single circuit with rail-to-rail output. This device offers a high output current capability of 2.4 A, a gain bandwidth product of 1.2 MHz, and a slew rate of 1.2 V/µs. Designed for surface mounting, it is supplied in a 12-VQFN (5x5) exposed pad package, delivered on tape and reel. Key specifications include an input bias current of 1 pA, an input offset voltage of 500 µV, and a supply current of 9 mA. The operating temperature range is -40°C to 85°C, with a supply voltage span from 2.5 V to 5.5 V. This component is suitable for applications in instrumentation and power supply designs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-VQFN Exposed Pad |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 9mA |
| Slew Rate | 1.2V/µs |
| Gain Bandwidth Product | 1.2 MHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 500 µV |
| Supplier Device Package | 12-VQFN (5x5) |
| Number of Circuits | 1 |
| Current - Output / Channel | 2.4 A |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
