OPA549TG3
IC POWER 1 CIRCUIT TO220-11Manufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More

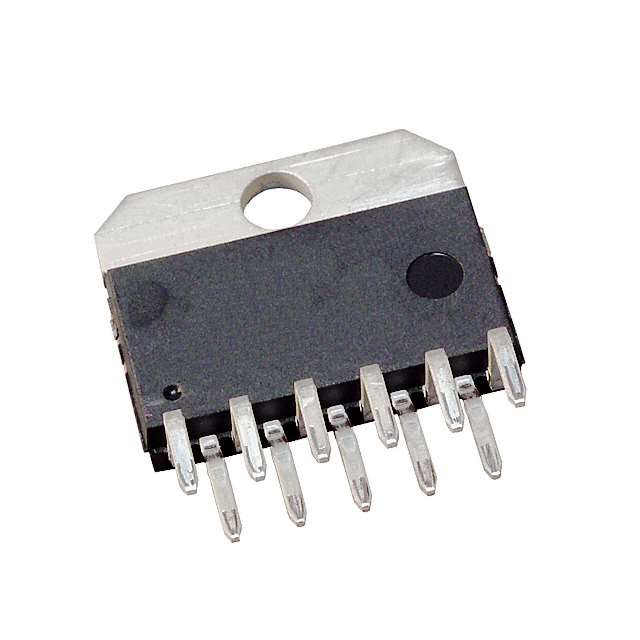

Texas Instruments OPA549TG3 is a high-performance, monolithic power operational amplifier designed for demanding applications. This single-circuit device features a robust TO-220-11 package with formed leads for through-hole mounting. With a high output current capability of 10 A per channel and a wide supply voltage range from 8 V to 60 V, the OPA549TG3 is well-suited for power control, motor drive, and audio amplification systems. It offers a 900 kHz gain bandwidth product and a 9 V/µs slew rate, ensuring accurate signal reproduction. The input bias current is a low 100 nA, and the offset voltage is 1 mV. Operating across a temperature range of -40°C to 85°C, this component is typically found in industrial automation, test and measurement equipment, and audio processing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-11 (Formed Leads) |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Power |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 26mA |
| Slew Rate | 9V/µs |
| Gain Bandwidth Product | 900 kHz |
| Current - Input Bias | 100 nA |
| Voltage - Input Offset | 1 mV |
| Supplier Device Package | TO-220-11 |
| Number of Circuits | 1 |
| Current - Output / Channel | 10 A |
| Voltage - Supply Span (Min) | 8 V |
| Voltage - Supply Span (Max) | 60 V |
