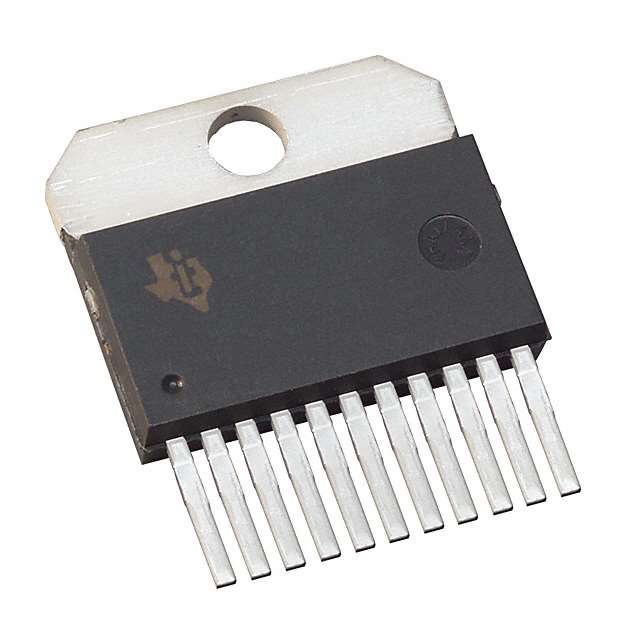

OPA549SG3
IC OPAMP POWER 1 CIRC 11PWRPACKManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments OPA549SG3 is a robust, high-performance monolithic operational amplifier designed for demanding power applications. This single-circuit device features a high output current capability of 10A, coupled with a wide supply voltage range of 8V to 60V. Its 900 kHz gain bandwidth product and 9V/µs slew rate ensure efficient operation in dynamic signal environments. The device exhibits a low input bias current of 100 nA and an input offset voltage of 1 mV. Packaged in a 11-Power Package (TO-220-11), it is suitable for through-hole mounting. The OPA549SG3 finds application in industrial control systems, motor drivers, and power supply regulation. Operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-11, Power Package |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Power |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 26mA |
| Slew Rate | 9V/µs |
| Gain Bandwidth Product | 900 kHz |
| Current - Input Bias | 100 nA |
| Voltage - Input Offset | 1 mV |
| Supplier Device Package | 11-Power Package |
| Number of Circuits | 1 |
| Current - Output / Channel | 10 A |
| Voltage - Supply Span (Min) | 8 V |
| Voltage - Supply Span (Max) | 60 V |
