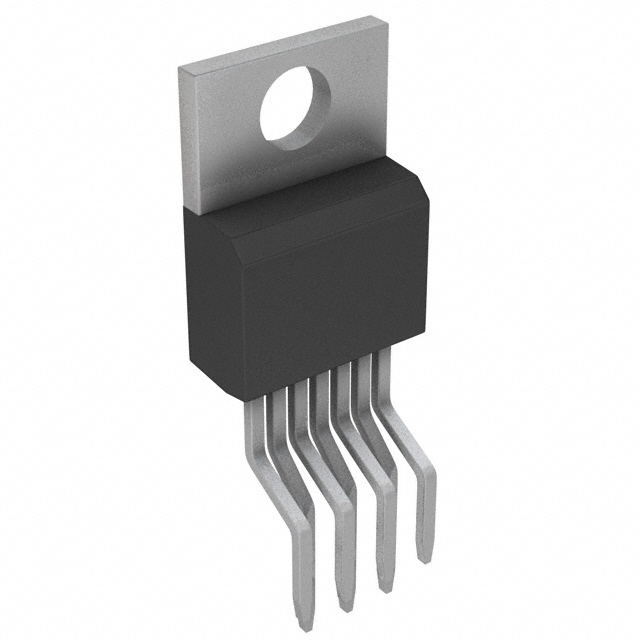

OPA547TG3
IC OPAMP GP 1 CIRCUIT TO220-7Manufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments OPA547TG3 is a high-performance, general-purpose operational amplifier. This single-circuit device, packaged in a TO-220-7 configuration, offers a robust solution for demanding applications. It features a 1 MHz gain bandwidth product and a 6 V/µs slew rate, enabling efficient signal amplification. The OPA547TG3 supports a wide supply voltage range from 8 V to 60 V and delivers a substantial 750 mA output current. With an input bias current of 100 nA and an input offset voltage of 1 mV, it provides precise amplification. This component is suitable for industrial automation, test and measurement, and motor control systems. The TO-220-7 formed leads facilitate through-hole mounting for reliable integration into various circuit designs. It operates within a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-7 Formed Leads |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 10mA |
| Slew Rate | 6V/µs |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 100 nA |
| Voltage - Input Offset | 1 mV |
| Supplier Device Package | TO-220-7 |
| Number of Circuits | 1 |
| Current - Output / Channel | 750 mA |
| Voltage - Supply Span (Min) | 8 V |
| Voltage - Supply Span (Max) | 60 V |
