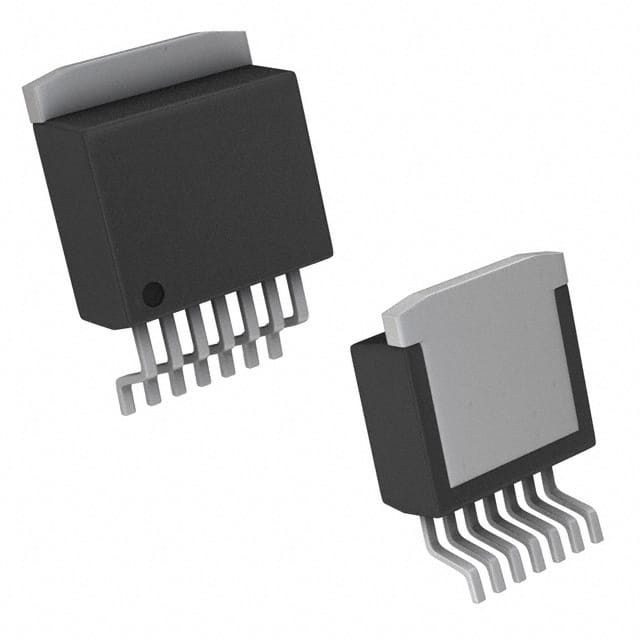

OPA547FKTWTG3
IC OPAMP GP 1 CIRC DDPAK/TO263-7Manufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments OPA547FKTWTG3 is a high-performance general-purpose operational amplifier. This single-circuit device features a 1 MHz gain bandwidth product and a 6 V/µs slew rate, suitable for demanding applications. It offers a robust output current capability of 750 mA, enabling driving of heavier loads. The OPA547FKTWTG3 operates across a wide supply voltage span from 8 V to 60 V. Key electrical characteristics include a 100 nA input bias current and a 1 mV input offset voltage. Packaged in a TO-263-8 (D2PAK) surface-mount configuration with tape and reel packaging, it is designed for efficient assembly in industrial, automotive, and high-power control systems. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 10mA |
| Slew Rate | 6V/µs |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 100 nA |
| Voltage - Input Offset | 1 mV |
| Supplier Device Package | TO-263 (DDPAK-7) |
| Number of Circuits | 1 |
| Current - Output / Channel | 750 mA |
| Voltage - Supply Span (Min) | 8 V |
| Voltage - Supply Span (Max) | 60 V |
