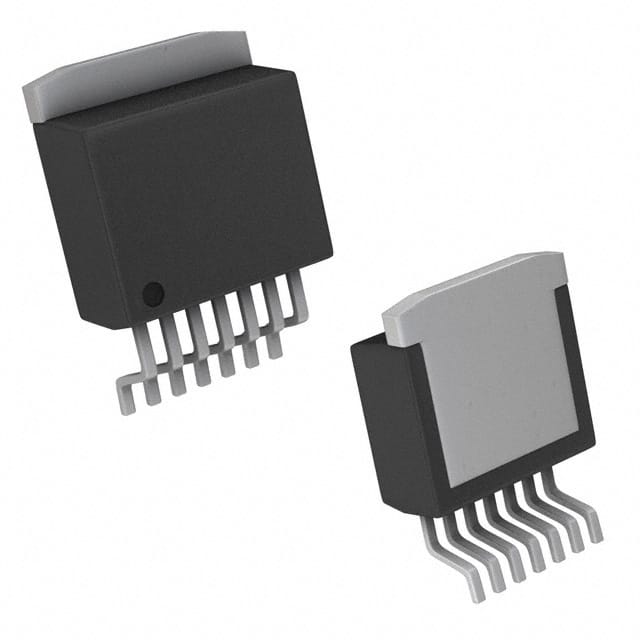

OPA547FKTWT
IC OPAMP GP 1 CIRC DDPAK/TO263-7Manufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments OPA547FKTWT is a high-performance, 1-circuit general-purpose operational amplifier housed in a TO-263 (DDPAK-7) surface-mount package. This amplifier boasts a 1 MHz gain bandwidth product and a 6V/µs slew rate, making it suitable for demanding applications. It supports a wide supply voltage range from 8V to 60V and delivers a substantial output current of up to 750 mA per channel. Key electrical specifications include a low input bias current of 100 nA and an input offset voltage of 1 mV. The OPA547FKTWT is designed for operation across a temperature range of -40°C to 85°C. Its robust current drive capability and broad operating parameters find utility in industrial automation, test and measurement equipment, and power control systems. This component is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 10mA |
| Slew Rate | 6V/µs |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 100 nA |
| Voltage - Input Offset | 1 mV |
| Supplier Device Package | TO-263 (DDPAK-7) |
| Number of Circuits | 1 |
| Current - Output / Channel | 750 mA |
| Voltage - Supply Span (Min) | 8 V |
| Voltage - Supply Span (Max) | 60 V |
