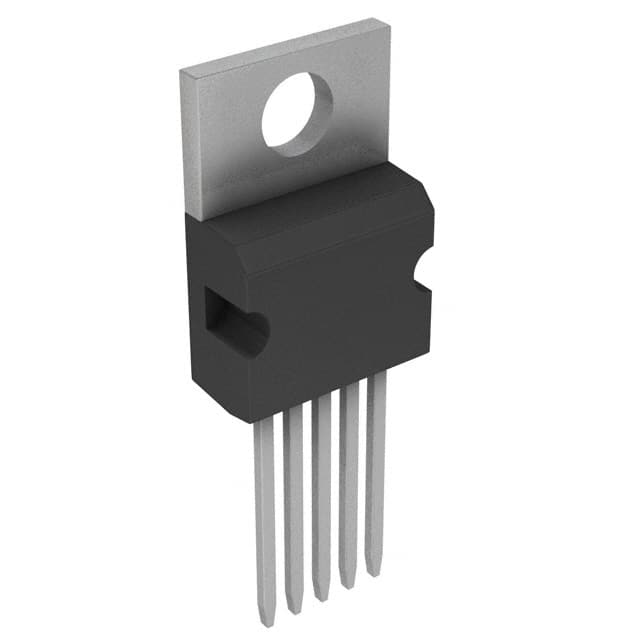

OPA544TG3
IC POWER 1 CIRCUIT TO220-5Manufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The Texas Instruments OPA544TG3 is a robust, high-performance power operational amplifier designed for demanding applications. This single-circuit, through-hole device features a 1.4 MHz gain bandwidth product and a 8V/µs slew rate, enabling efficient signal amplification. It delivers a significant 2 A output current per channel and operates across a wide supply voltage span from 20 V to 70 V, with a typical quiescent current of 12 mA. With an input bias current of 15 pA and an input offset voltage of 1 mV, the OPA544TG3 ensures accurate signal processing. Packaged in a TO-220-5 configuration and supplied in tubes, this amplifier is suitable for use in industrial automation, motor control, and audio power amplifier systems. Operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-5 |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Power |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 12mA |
| Slew Rate | 8V/µs |
| Gain Bandwidth Product | 1.4 MHz |
| Current - Input Bias | 15 pA |
| Voltage - Input Offset | 1 mV |
| Supplier Device Package | TO-220-5 |
| Number of Circuits | 1 |
| Current - Output / Channel | 2 A |
| Voltage - Supply Span (Min) | 20 V |
| Voltage - Supply Span (Max) | 70 V |
Request a Quote
