OPA541SM
IC POWER 1 CIRCUIT TO3-8Manufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More

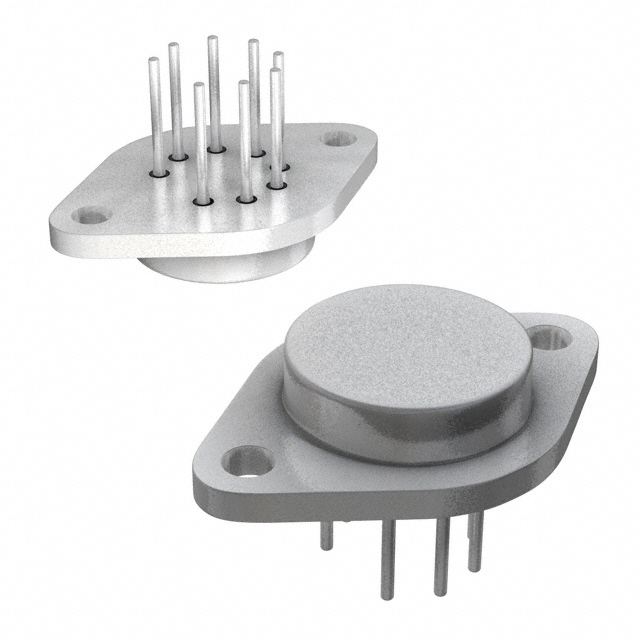

Texas Instruments OPA541SM is a high-performance power operational amplifier. This single-circuit device features a robust TO-3-8 package suitable for demanding applications. With a continuous output current capability of 10A and a wide supply voltage range from ±10V to ±40V (80V span), the OPA541SM is engineered for power-intensive tasks. Key specifications include a 1.6 MHz gain bandwidth product and a 10V/µs slew rate, enabling efficient signal amplification in dynamic systems. Input bias current is exceptionally low at 4 pA, minimizing signal degradation. The OPA541SM finds application in motor control, audio amplifiers, and power supply regulation. Operating across a temperature range of -55°C to 125°C, it provides reliable performance in harsh environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-3-8 |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Power |
| Operating Temperature | -55°C ~ 125°C |
| Current - Supply | 20mA |
| Slew Rate | 10V/µs |
| Gain Bandwidth Product | 1.6 MHz |
| Current - Input Bias | 4 pA |
| Voltage - Input Offset | 100 µV |
| Supplier Device Package | TO-3-8 |
| Number of Circuits | 1 |
| Current - Output / Channel | 10 A |
| Voltage - Supply Span (Min) | 20 V |
| Voltage - Supply Span (Max) | 80 V |
