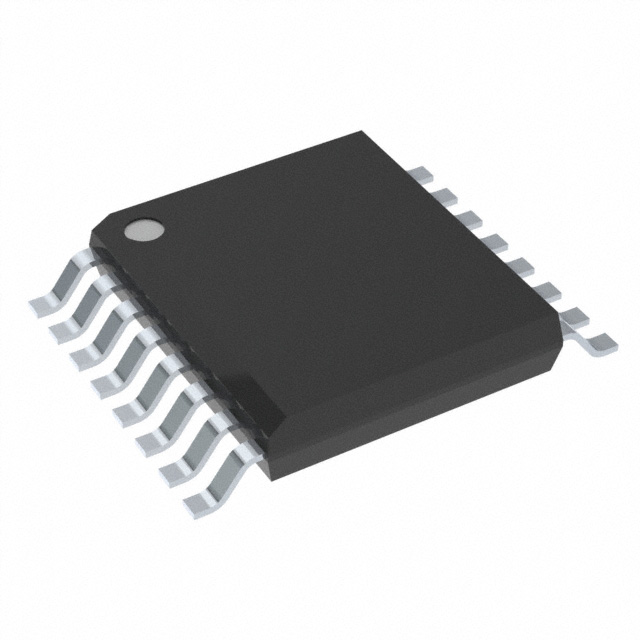

OPA3684IDBQRG4
IC OPAMP CFA 3 CIRCUIT 16SSOPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments OPA3684IDBQRG4 is a 3-circuit current feedback operational amplifier. This device features a high slew rate of 780V/µs and a -3dB bandwidth of 250 MHz, making it suitable for high-speed signal processing applications. The amplifier type is current feedback, with a gain bandwidth product of 120 MHz. It requires a supply current of 1.7mA and can operate from a minimum supply voltage of 2.8V up to a maximum of 12V. The input bias current is 5 µA, and the output current per channel is 160 mA. The input offset voltage is 1.5 mV. This component is housed in a 16-SSOP package and is supplied on tape and reel, designed for surface mount applications. The OPA3684IDBQRG4 is commonly utilized in instrumentation and buffer amplifier designs across various industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SSOP (0.154"", 3.90mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Current Feedback |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 1.7mA |
| Slew Rate | 780V/µs |
| Gain Bandwidth Product | 120 MHz |
| Current - Input Bias | 5 µA |
| Voltage - Input Offset | 1.5 mV |
| Supplier Device Package | 16-SSOP |
| Number of Circuits | 3 |
| Current - Output / Channel | 160 mA |
| -3db Bandwidth | 250 MHz |
| Voltage - Supply Span (Min) | 2.8 V |
| Voltage - Supply Span (Max) | 12 V |
