OPA2337EA/250G4
IC CMOS 2 CIRCUIT SOT23-8Manufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More

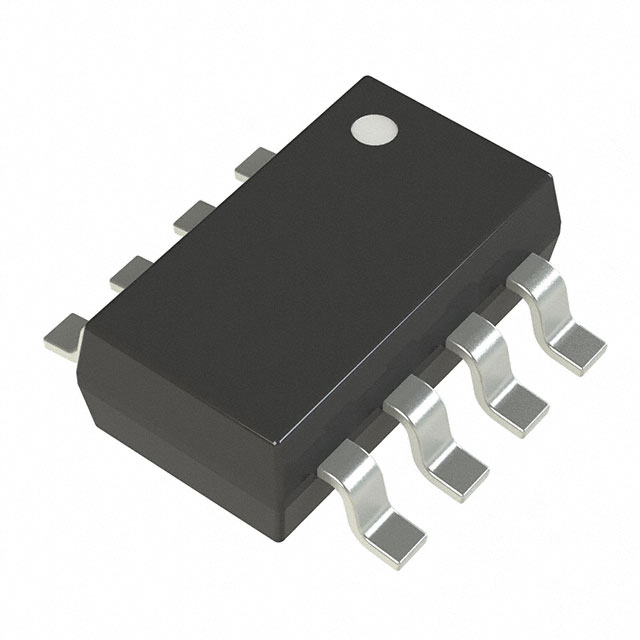

The Texas Instruments OPA2337EA-250G4 is a dual-channel CMOS operational amplifier from the MicroAmplifier™ series, housed in a SOT-23-8 package. This device offers rail-to-rail output capabilities and features a low input bias current of 0.2 pA and a low input offset voltage of 500 µV. With a gain bandwidth product of 3 MHz and a slew rate of 1.2 V/µs, it is suitable for applications requiring precise signal amplification. The OPA2337EA-250G4 operates over a supply voltage range of 2.7 V to 5.5 V, consuming a quiescent current of 525 µA per channel. Its surface mount design and compact SOT-23-8 package make it ideal for space-constrained designs. This component finds application in instrumentation and battery-powered devices. It is supplied on a Tape & Reel (TR) for automated assembly.
Additional Information
Series: MicroAmplifier™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-8 |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | CMOS |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 525µA (x2 Channels) |
| Slew Rate | 1.2V/µs |
| Gain Bandwidth Product | 3 MHz |
| Current - Input Bias | 0.2 pA |
| Voltage - Input Offset | 500 µV |
| Supplier Device Package | SOT-23-8 |
| Number of Circuits | 2 |
| Current - Output / Channel | 9 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5.5 V |
