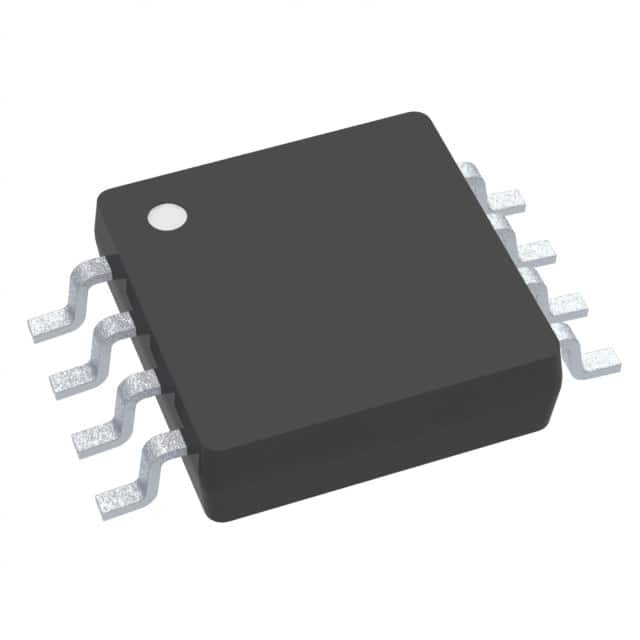

OPA2320AIDGKT
IC CMOS 2 CIRCUIT 8VSSOPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments OPA2320AIDGKT is a dual-channel CMOS operational amplifier featuring rail-to-rail input and output capabilities. With a gain bandwidth product of 20 MHz and a slew rate of 10V/µs, this component is well-suited for precision instrumentation applications. It operates with a supply voltage span from 1.8V to 5.5V, drawing a low quiescent current of 1.45mA per channel. The device exhibits a low input bias current of 0.2 pA and an input offset voltage of 40 µV, ensuring accuracy in signal processing. The OPA2320AIDGKT is provided in an 8-VSSOP package, suitable for surface mounting. This amplifier finds application in automotive, industrial, and medical electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | CMOS |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Current - Supply | 1.45mA |
| Slew Rate | 10V/µs |
| Gain Bandwidth Product | 20 MHz |
| Current - Input Bias | 0.2 pA |
| Voltage - Input Offset | 40 µV |
| Supplier Device Package | 8-VSSOP |
| Number of Circuits | 2 |
| Current - Output / Channel | 65 mA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5.5 V |
