OPA2107AP
IC OPAMP GP 2 CIRCUIT 8DIPManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments OPA2107AP is a dual, general-purpose operational amplifier from the Difet® series. This component features low input bias current of 4 pA and a low input offset voltage of 100 µV, making it suitable for precision applications. With a gain bandwidth product of 4.5 MHz and a slew rate of 18 V/µs, it offers robust performance for signal conditioning and amplification tasks. The OPA2107AP supports a wide supply voltage range from ±4.5 V to ±18 V (9 V to 36 V span) and draws a quiescent current of 4.5 mA per channel. It is packaged in an 8-pin PDIP (0.300" width) for through-hole mounting. This device finds application in instrumentation and buffer amplifier circuits across various industries.
Additional Information
Series: Difet®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-DIP (0.300"", 7.62mm) |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | General Purpose |
| Operating Temperature | -25°C ~ 85°C |
| Current - Supply | 4.5mA (x2 Channels) |
| Slew Rate | 18V/µs |
| Gain Bandwidth Product | 4.5 MHz |
| Current - Input Bias | 4 pA |
| Voltage - Input Offset | 100 µV |
| Supplier Device Package | 8-PDIP |
| Number of Circuits | 2 |
| Current - Output / Channel | 40 mA |
| Voltage - Supply Span (Min) | 9 V |
| Voltage - Supply Span (Max) | 36 V |
Request a Quote
Clients Also Buy
OPA602AU
IC OPAMP GP 1 CIRCUIT 8SOIC

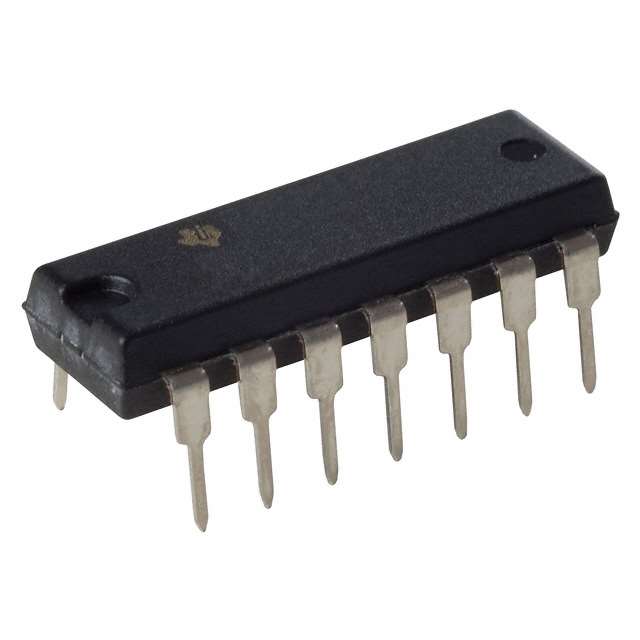

OPA404KP
