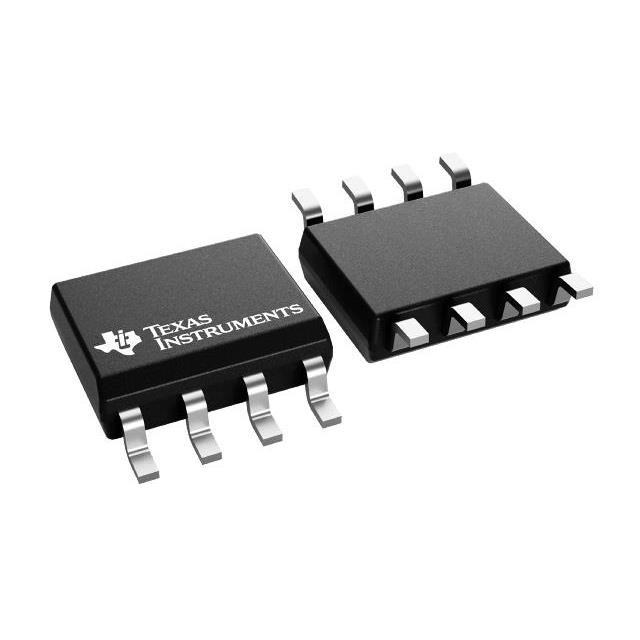

MC33078DR-NG
PROTOTYPEManufacturer: Texas Instruments
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Texas Instruments MC33078DR-NG, a dual general-purpose operational amplifier, offers a 16 MHz gain bandwidth product and a 7V/µs slew rate. This device features single-ended outputs and a low input bias current of 300 nA. Designed for surface mounting, it is housed in an 8-SOIC package with a 3.90mm width. Operating from a wide supply voltage range of 10V to 36V, it draws a quiescent current of 2.05mA per channel. The MC33078DR-NG is suitable for applications in industrial automation, medical instrumentation, and consumer electronics. It operates across a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Output Type | Single-Ended |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Supply | 2.05mA (x2 Channels) |
| Slew Rate | 7V/µs |
| Gain Bandwidth Product | 16 MHz |
| Current - Input Bias | 300 nA |
| Voltage - Input Offset | 150 µV |
| Supplier Device Package | 8-SOIC |
| Number of Circuits | 2 |
| Current - Output / Channel | 37 mA |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 36 V |
